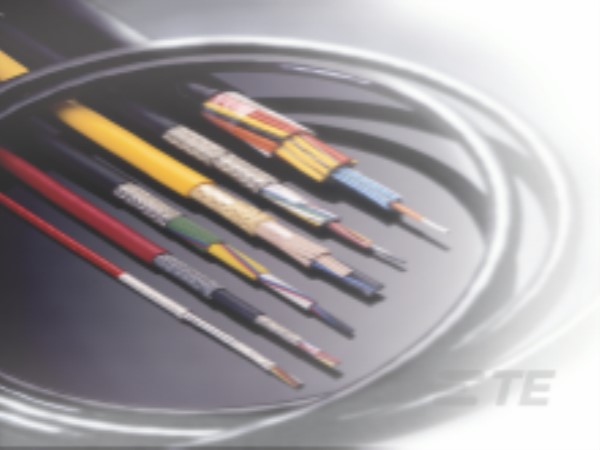

Image is representational - see mfr. specs

44A0111-16-8

The 44A0111-16-8 is a 16 AWG, 600V, lightweight, general-purpose electrical wire with a tin-coated copper conductor and radiation-crosslinked insulation. ...

Datasheet

RoHS Compliant

Reel Packaging

Certificate of Compliance Guarantee

DESCRIPTION

The 44A0111-16-8 is a 16 AWG, lightweight, general-purpose electrical wire rated for 600 volts. It is constructed with a 19x29 stranded, tin-coated copper conductor and features a dual-wall insulation system with a radiation-crosslinked polyalkene primary layer and a modified PVF2 jacket. Key performance characteristics include a maximum conductor resistance of 4.81 ohms/1000 ft, a maximum continuous temperature rating of 150°C, and a finished wire diameter of 0.072 ± 0.003 inches. Due to its robust and lightweight design, this wire is well-suited for general-purpose applications requiring high durability and resistance to harsh environments.

Product Highlights:

Potential Applications:

Search Keywords: 44A0111168

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

TE Connectivity / Raychem Brand

Part No:

44A0111-16-8

Alias/AKA:

2820083005

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8544493080

COO:

ECCN:

EAR99

Reel Pack: This product ships on a reel. Depending on the quantity ordered, you may receive full factory reels, cut tape (components on a strip cut from a reel), or a combination of both.
