222A142-25-0 by te connectivity / raychem brand

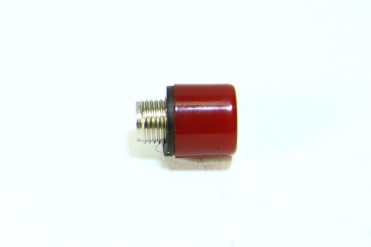

Image is representational - see manufacturer specifications
TE Connectivity / Raychem Brand Authorized Distributor

222A142-25-0

The 222A142-25-0 is a right-angled, lipless heat-shrink boot made from a fluid-resistant elastomer, designed for mechanical protection and connector-cable strain relief. ...

View Datasheet Ask the Datasheet
RoHS Compliant
Bag Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

The 222A142-25-0 is a right-angled, lipless boot designed to provide mechanical protection and strain relief for cable-to-connector terminations. Constructed from a fluid-resistant elastomer, this boot has a minimum supplied main entry diameter of 32.5 mm and a cable entry of 17.3 mm. After unrestricted heat recovery, the main entry diameter shrinks to a maximum of 22.9 mm, ensuring a tight fit. The lipless design allows the boot to be installed directly onto the connector accessory thread, making it suitable for applications requiring robust environmental sealing and strain relief where fluid resistance is critical.

Search Keywords: 222A142250

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / Raychem Brand
Part No:
222A142-25-0
Alias/AKA:
806702-000
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
3926909989
COO:
MX
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
1
Package Type:
Bag
Type:
Molded Boot
Body Material:
Fluid Resistant Elastomer
Shrink Wall Type:
Thin
Styles:
Right Angle
Operating Temperature:
-75 to 150 °C
Inside Diameter After Shrinking:
17.3/6.9 mm
Inside Diameter Before Shrinking:
32.5/32.5 mm

FREQUENTLY ASKED QUESTIONS

Is 222A142-25-0 RoHS compliant?

Yes, 222A142-25-0 is RoHS compliant.

What is the lead time for 222A142-25-0?

The standard lead time for 222A142-25-0 is approximately 38 weeks. In-stock quantities ship from Master Electronics.

IN STOCK: 76

Ships today, if you order in

On Order: 125   can ship 6/14/27

Factory Lead-Time 38 Weeks

Price (USD)

Qty
Unit Price
1
$30.22
5
$23.21
10
$22.98
25
$22.31
50
$22.07
100
$21.87
250 +
$20.75
