RT334012 by te connectivity / p-b brand
Image is representational - see mfr. specs

RT334012

TE Connectivity / P&B Brand

Power Relay 12VDC 16A SPST-NO(29mm 12.7mm 15.7mm) THT ...

Datasheet
RoHS Compliant
Carton Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The RT334012 from TE Connectivity / P&B Brand is through hole mounting single pole single throw (SPST) power relay with NO contact configuration, 12VDC coil voltage and 360 Ohms coil resistance. This relay has 16A contact curent and 400VAC max switching voltage. Dimensions of this relay are: 29 mm x 12.7 mm x 15.7 mm. Operating temperature range is from -40°C to 85°C.

Product Highlights:

  • Relay Type = Power PCB Relay
  • Relay Style = PCB
  • RT1 Series
  • Contact Arrangement = 1 Form A, SPST-NO, 1 N/O
  • Contact Current Rating = 16 A

Search Keywords: RT334012

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / P&B Brand
Part No:
RT334012
Alias/AKA:
4-1393240-5
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536410050
COO:
AT
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
500
Package Type:
Carton
Relay Construction:
Non-Latching
AC Coil Voltage:
N/A
DC Coil Voltage:
12 V
Contact Arrangement:
SPST-NO
Mounting:
Through Hole
Termination Style:
PC Pin
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-40 to 85 °C
Coil Resistance:
360 Ohm

IN STOCK: 8,276

Ships today, if you order in

Minimum Order Quantity: 10

Factory Lead-Time 14 Weeks

Qty
Unit Price
10
$3.14
50
$2.78
250
$2.72
500
$2.71
1,000
$2.69
2,500
$2.43
5,000
$2.42
7,500 +
$2.41
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request
Please Note: Tariffs may apply for U.S. shipments
Older Equivalent

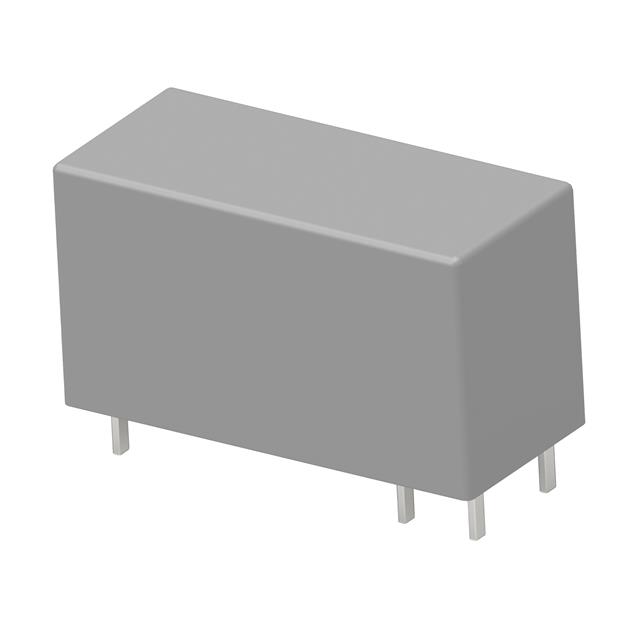

RT334012WG
RT334012WG
VIEW PRODUCT
