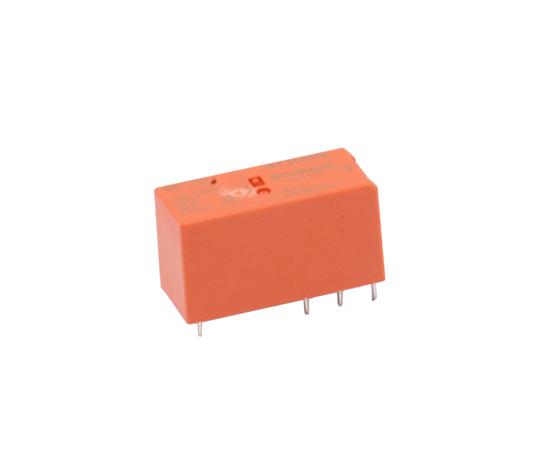

RT314012 by te connectivity / p-b brand
Image is representational - see manufacturer specifications
TE Connectivity / P&B Brand Authorized Distributor

RT314012

General Purpose Relay - SPDT (1 Form C) - 12VDC Coil - 16A Contact - 400VAC Switching - Non Latching Coil - Plug In - Through Hole. ...

View Datasheet Ask the Datasheet
RoHS Compliant
BOX Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

The RT314012 is general purpose relay with operating temperature range from -40°C to 85°C.

Product Highlights:

  • RT1 Series
  • Contact Arrangement = 1 Form C, SPDT, 1 C/O
  • Contact Current Rating = 16 Amps.
  • Monostable Coil Magnetic System
  • Without Coil Suppression Diode

Search Keywords: RT314012

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / P&B Brand
Part No:
RT314012
Alias/AKA:
9-1393239-5
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536410050
COO:
MX
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
20
Package Type:
BOX
Relay Construction:
Non-Latching
AC Coil Voltage:
N/A
DC Coil Voltage:
12 V
Contact Arrangement:
SPDT
Mounting:
Through Hole
Termination Style:
PC Pin
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-40 to 85 °C
Coil Resistance:
360 Ohm

FREQUENTLY ASKED QUESTIONS

What replaces RT314012?

The recommended replacement for RT314012 is RT314012WG from TE Connectivity / P&B Brand, available from Master Electronics.

Is RT314012 RoHS compliant?

Yes, RT314012 is RoHS compliant.

What is the lead time for RT314012?

The standard lead time for RT314012 is approximately 14 weeks. In-stock quantities ship from Master Electronics.

IN STOCK: 1,480

Can Ship immediately

Minimum Order Quantity: 20

Multiple: 20

Factory Lead-Time 14 Weeks

Price (USD)

Qty
Unit Price
20
$3.01
60
$2.97
260
$2.94
500
$2.91
1,000
$2.48
2,500
$2.31
5,000
$2.19
7,500 +
$2.18
Supplier's Standard Package
