PRD-7AG0-120 by te connectivity / p-b brand

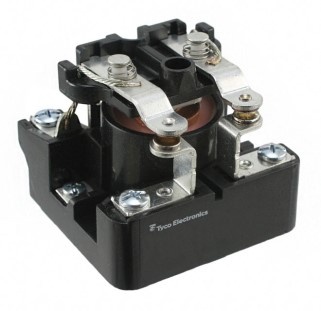

Image is representational - see manufacturer specifications
TE Connectivity / P&B Brand Authorized Distributor

PRD-7AG0-120

Power Relay - DPST-NO (2 Form A) - 120VAC Coil - 30A Contact - 240VAC Switching - Non Latching Coil - Screw Terminal - Chassis Mount. ...

View Datasheet
RoHS Compliant
TRAY Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

The PRD-7AG0-120 is power relay with dimensions: 85.7mm L x 63.8 mm W x 63.5 mm H. Operating temperature range is from -55°C to 45°C.

Product Highlights:

  • PRD Series
  • Contact Arrangement = 2 Form A, DPST-NO, 2 N/O
  • Contact Current Rating = 30 Amps.
  • Monostable Coil Magnetic System
  • Input Voltage = 120 VAC

Search Keywords: PRD7AG0120

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / P&B Brand
Part No:
PRD-7AG0-120
Alias/AKA:
9-1393129-5
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536490075
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
20
Package Type:
TRAY
Relay Construction:
Non-Latching
AC Coil Voltage:
120 V
DC Coil Voltage:
N/A
Contact Arrangement:
DPST-NO
Mounting:
N/A
Termination Style:
Screw Terminal
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-55 to 45 °C

FREQUENTLY ASKED QUESTIONS

What replaces PRD-7AG0-120?

The recommended replacement for PRD-7AG0-120 is PRD-7AY0-120 from TE Connectivity / P&B Brand, available from Master Electronics.

Is PRD-7AG0-120 RoHS compliant?

Yes, PRD-7AG0-120 is RoHS compliant.

What is the lead time for PRD-7AG0-120?

The standard lead time for PRD-7AG0-120 is approximately 25 days. In-stock quantities ship from Master Electronics.

  Possible Replacement options available.  See Alternatives

IN STOCK: 847

Can Ship immediately

Factory Lead-Time 25 Weeks

Price (USD)

Qty
Unit Price
1
$76.56
5
$74.37
20
$70.89
40
$70.71
60
$64.90
100
$57.11
260 +
$56.97
