KUP-11D15-24 by te connectivity / p-b brand

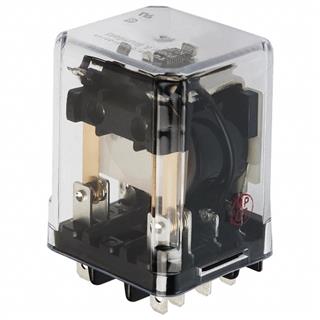

Image is representational - see manufacturer specifications
TE Connectivity / P&B Brand Authorized Distributor

KUP-11D15-24

Power Relay 24VDC 10A DPDT(38.9mm 35.7mm 50mm) Socket ...

View Datasheet Ask the Datasheet
RoHS Compliant
BAG Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

The TE Connectivity / P&B Brand part KUP-11D15-24 is a reliable power relay designed for a wide range of applications. It is a double-pole, double-throw (DPDT) relay with a maximum current rating of 10A. This relay operates on a 24VDC power supply and comes with a convenient socket for easy installation. With its compact dimensions of 38.9mm x 35.7mm x 50mm, it can easily fit into tight spaces without sacrificing functionality. The KUP-11D15-24 relay is known for its high-quality construction and long-lasting performance, making it an excellent choice for various industrial and commercial applications.

Product Highlights:

  • KUP Series
  • Contact Arrangement = 2 Form C, DPDT, 2 C/O
  • Contact Current Rating = 10 Amps.
  • Monostable Coil Magnetic System
  • Without Coil Suppression Diode

Search Keywords: KUP11D1524

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / P&B Brand
Part No:
KUP-11D15-24
Alias/AKA:
4-1393117-5
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536490075
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
25
Package Type:
BAG
Relay Construction:
Non-Latching
AC Coil Voltage:
N/A
DC Coil Voltage:
24 V
Contact Arrangement:
DPDT
Maximum Current Rating:
10 A
Mounting:
Socket
Termination Style:
0.187Quick Connect/Solder
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-45 to 70 °C
Coil Resistance:
472 Ohm

FREQUENTLY ASKED QUESTIONS

What replaces KUP-11D15-24?

The recommended replacement for KUP-11D15-24 is KUP-11D11-24 from TE Connectivity / P&B Brand, available from Master Electronics.

Is KUP-11D15-24 RoHS compliant?

Yes, KUP-11D15-24 is RoHS compliant.

What is the lead time for KUP-11D15-24?

The standard lead time for KUP-11D15-24 is approximately 25 days. In-stock quantities ship from Master Electronics.

  Possible Replacement options available.  See Alternatives

IN STOCK: 868

Can Ship immediately

On Order: 600   can ship 9/28/26

Factory Lead-Time 25 Weeks

Price (USD)

Qty
Unit Price
1
$33.84
5
$31.35
10
$27.65
25
$26.14
50
$25.24
100
$24.16
250 +
$23.05
Supplier's Standard Package
