KUP-11D15-110 by te connectivity / p-b brand

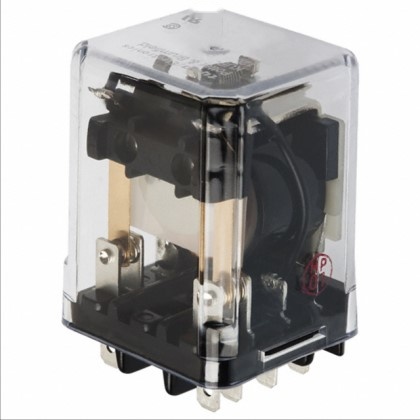

Image is representational - see mfr. specs

KUP-11D15-110

TE Connectivity / P&B Brand

Power Relay 110VDC 10A DPDT(39.4x35.7x50)mm Socket ...

Datasheet
RoHS Compliant
Pack Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The KUP-11D15-110 from TE Connectivity / P&B Brand is socket mount double pole double throw (DPDT) power relay with 110VDC coil voltage and 10 kOhms coil resistance. This relay has 10A contact curent and 240VAC max switching voltage. Dimensions of this relay are: 39.4 mm x 35.7 mm x 50 mm. Operating temperature range is from -45°C to 70°C.

Product Highlights:

  • KUP Series
  • Contact Arrangement = 2 Form C, DPDT, 2 C/O
  • Contact Current Rating = 10 Amps.
  • Monostable Coil Magnetic System
  • Without Coil Suppression Diode

Search Keywords: KUP11D15110

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / P&B Brand
Part No:
KUP-11D15-110
Alias/AKA:
4-1393117-3
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536410020
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
25
Package Type:
Pack
Relay Construction:
Non-Latching
AC Coil Voltage:
N/A
DC Coil Voltage:
110 V
Contact Arrangement:
DPDT
Maximum Current Rating:
10 A
Mounting:
Socket
Termination Style:
0.187Quick Connect/Solder
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-45 to 70 °C
Coil Resistance:
10 KOhm

IN STOCK: 637

Can Ship immediately

Factory Lead-Time 25 Weeks

Qty
Unit Price
1
$21.46
5
$14.83
10
$14.76
25
$14.66
50
$14.52
100
$14.44
250 +
$14.36
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request
Please Note: Tariffs may apply for U.S. shipments
