KRPA-14AN-120 by te connectivity / p-b brand
Image is representational - see manufacturer specifications
TE Connectivity / P&B Brand Authorized Distributor

KRPA-14AN-120

Power Relay 120VAC 10A 3PDT(35.7x35.7x50.8)mm Socket ...

View Datasheet Ask the Datasheet
RoHS Compliant
TRAY Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

The TE Connectivity / P&B KRPA-14AN-120 is a reliable and high-performance power relay designed for a wide range of applications. With a voltage rating of 120VAC and a current rating of 10A, this relay ensures efficient and secure power switching.Featuring a 3PDT (triple pole double throw) configuration, the KRPA-14AN-120 provides versatile control options for various circuits. Its compact form factor, measuring 35.7x35.7x50.8mm, allows for easy integration into tight spaces and crowded control panels.This power relay is complemented by a compatible socket for hassle-free installation and maintenance. The TE Connectivity / P&B KRPA-14AN-120 is a trusted choice for professionals in industries like automation, HVAC, industrial machinery, and more, delivering excellent performance and durability.

Product Highlights:

  • KRPA Series
  • Contact Arrangement = 3 Form C, 3PDT, 3 C/O
  • Contact Current Rating = 10 Amps.
  • Monostable Coil Magnetic System
  • Input Voltage = 120 VAC

Search Keywords: KRPA14AN120

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / P&B Brand
Part No:
KRPA-14AN-120
Alias/AKA:
7-1393104-3
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536490075
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
25
Package Type:
TRAY
Relay Construction:
Non-Latching
AC Coil Voltage:
120 V
DC Coil Voltage:
N/A
Contact Arrangement:
3PDT
Maximum Current Rating:
10 A
Mounting:
Socket
Termination Style:
11-Pin Circular Plug
Push to Test Button:
No
Led Indicator:
Yes
Operating Temperature:
-45 to 55 °C
Coil Resistance:
2.25 KOhm

FREQUENTLY ASKED QUESTIONS

Is KRPA-14AN-120 RoHS compliant?

Yes, KRPA-14AN-120 is RoHS compliant.

What is the lead time for KRPA-14AN-120?

The standard lead time for KRPA-14AN-120 is approximately 19 days. In-stock quantities ship from Master Electronics.

IN STOCK: 274

Can Ship immediately

Factory Lead-Time 19 Weeks

Price (USD)

Qty
Unit Price
1
$45.45
5
$33.62
10
$32.92
25
$31.89
50
$31.57
100
$31.41
250 +
$30.85
Supplier's Standard Package
Log in for special pricing Click for Quote Price Match Request

Tools/3D Models

Product Guides

Accessories

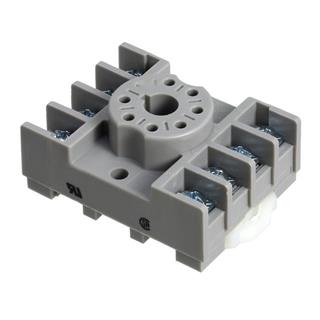

27E122

Relay Socket - Octal Base - 8P - Screw Tmnls - Panel or TE/P&B Track (NOT DIN Rail) Mount

27E123

Relay Socket - Octal Base - 11P - Screw Tmnls - Panel or TE/P&B Track (NOT DIN Rail) Mount

27E891

Relay Socket - Octal Base - 8-pin - Screw Terminals - Panel or DIN Rail Mount

27E892

Relay Socket - Octal Base - 11-pin - Screw Terminals - Panel or DIN Rail Mount

Show 2 More
