103749 by te connectivity / erni

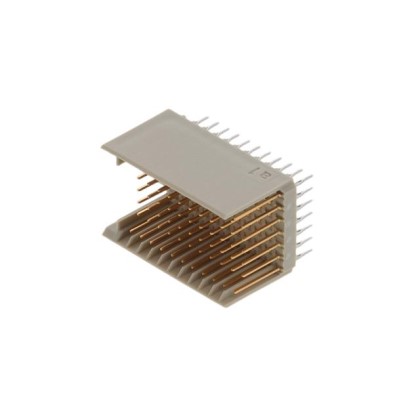

Image is representational - see mfr. specs

103749

TE Connectivity / ERNI

2MM HM C 77POS M 3.7MM ...

Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
Discontinued
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 103749 is an ERmet® 2mm Hard Metric vertical male connector Type C designed for backplane installations. It provides 55 signal contacts and 22 ground shield contacts in a 5+2 row by 11 position fully loaded configuration, with 15 different standard pin lengths available for versatile applications. The connector features pre-alignment guides and is designed for gas-tight pressfit installation, incorporating extended terminals and a peg for secure mounting. It can be used standalone or in conjunction with Type B, L, M, or N ERmet connectors, though it can only be installed at the lower end of a connector row. This connector is ideal for high-density backplane interconnections requiring reliable signal and ground distribution in modular stacking configurations.

Search Keywords: 103749

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / ERNI
Part No:
103749
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694040
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Life Cycle:
Discontinued
  This product is discontinued, but still in stock

IN STOCK: 32,486

Can Ship immediately

Minimum Order Quantity: 10

Price (USD)

Qty
Unit Price
10
$7.01
50
$6.73
250
$6.47
550
$6.22
1,700 +
$5.96
Log in for special pricing Click for Quote Price Match Request
