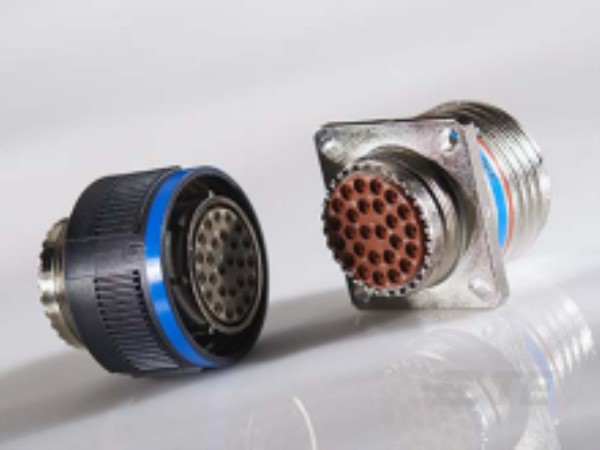

Image is representational - see mfr. specs
DESCRIPTION
DTS 20 S 17-26 UN
Search Keywords: ZPF000000000098305
SPECIFICATIONS
Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / Deutsch
Part No:
ZPF000000000098305
Alias/AKA:
DTS20S17-26UN
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8538908180
COO:
FR
ECCN:
EAR99
Supplier Standard Pack:
1
Operating Temperature Range:
-65 – 200 °C, -85 – 392 °F
Circular Connector Insulation Material Type:
Thermoset
Accessory Color:
Natural
Durability Rating:
500 Cycles
Contact Current Rating (Max):
7.5 A
Prewired:
No
Contact Layout Arrangement:
17 – 26
Factory Installed Backshell:
Without
Mating Alignment:
With
Mating Retention:
With
Number of Positions:
26
Shell Type:
Square Flange Receptacle
Panel Mount Feature Type:
Square Flange
Connector Mounting Type:
Panel Mount
Sealable:
Yes
Panel Mount Feature:
With
Termination Method to Wire & Cable:
Crimp
Assembly Type:
Electrical Connector
Keying:
Keyway Polarization N
Number of Signal Positions:
26
Circular Connector Contact Type:
Less Socket
Reverse Gender:
No
Number of Power Positions:
0
Mating Alignment Type:
Keyed
Hermetically Sealed:
No
Shell Base Material:
Stainless Steel
Connector System:
Wire-to-Panel
Mating Retention Type:
Threaded
Circular Connector Type:
Receptacle
Wire Size:
20 – 24 AWG, .2 – .52 mm²
Alignment Keyed:
Clocking
Shielded:
Yes
Circular Connector Shell Size:
E (17)
Shell Plating Material:
Nickel
Environmental Protection Type:
Elastomer Sealed
Contacts Preloaded:
No
Product Type:
Connector Assembly
Connector & Contact Terminates To:
Wire & Cable
Circuit Application:
Power, Signal & High Speed Data
IN STOCK: 34
Can Ship immediately
Factory Lead-Time 26 Weeks
Price (USD)
Qty
Unit Price
1
$208.12
4
$207.60
7
$146.00
10
$121.36
13
+
$118.94
3D PDF
Product Drawing - DTS SQUARE FLANGE ENVELOPE
Datasheet
