DESCRIPTION

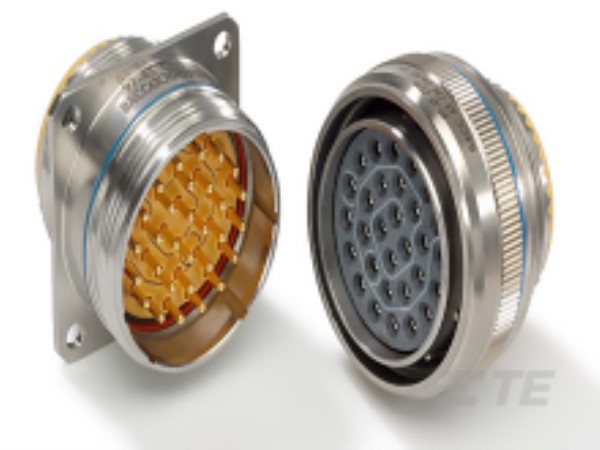

The 983-0SE22-32SN-L is a sealed square flange receptacle connector from the DEUTSCH 983 Series designed for extreme reliability in harsh aerospace, defense, and marine applications. This connector features a shell size 22 with a 22-32 arrangement containing 26 contacts of size 20 and 6 contacts of size 12, all configured as female contacts with key orientation N. The connector is supplied without contacts (index L designation), allowing for custom contact configuration as needed. The sealed design and stainless steel construction provide superior protection against environmental contamination and corrosion, making it ideal for mission-critical systems requiring robust electrical interconnection in demanding operational environments.

Search Keywords: ZPF000000000007698

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / Deutsch
Part No:
ZPF000000000007698
Alias/AKA:
983-0SE22-32SN-L
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694040
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
Pack
Shell Plating Material:
Passivated Stainless Steel Firewall
Contacts Preloaded:
No
Shielded:
Yes
Durability Rating:
500 Cycles
Alignment Keyed:
Clocking
Assembly Type:
Electrical Connector
Circular Connector Type:
Receptacle
Shell Type:
Square Flange Receptacle
Approved Standards:
BACC63 , EN2997 , ESC10
Hermetically Sealed:
No
Panel Mount Feature Type:
Square Flange
Mating Alignment Type:
Keyed
Connector System:
Wire-to-Panel
Mating Alignment:
With
Sealable:
Yes
Contact Layout Arrangement:
22 – 32
Circular Connector Insulation Material Type:
Thermoset
Contact Current Rating (Max):
23 A, 7.5 A
Termination Method to Wire & Cable:
Crimp
Number of Power Positions:
0
Panel Mount Feature:
With
Accessory Color:
Natural
Keying:
Keyway Polarization N
Mating Retention Type:
Threaded
Circular Connector Shell Size:
22
Shell Base Material:
Stainless Steel
Prewired:
No
Number of Positions:
32
Wire Size:
20 – 24 AWG, .2 – .52 mm²
Reverse Gender:
No
Operating Temperature Range:
-65 – 260 °C, -85 – 500 °F
Mating Retention:
With
Factory Installed Backshell:
Without
Connector Mounting Type:
Panel Mount
Number of Signal Positions:
32
Circular Connector Contact Type:
Less Socket
Connector & Contact Terminates To:
Wire & Cable
Circuit Application:
Power, Signal & High Speed Data
Product Type:
Connector Assembly

IN STOCK: 14

Can Ship immediately

You may purchase all in-stock quantity of 14

Stock lot only: 14

MOQ for In Stock Qty: 16

MOQ for out of Stock Qty: 16

Factory Lead-Time 9 Weeks
