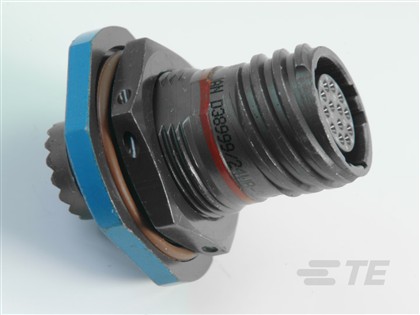

Image is representational - see mfr. specs
DESCRIPTION
RECP ASSY
Search Keywords: YDTS24F1335SNV001
SPECIFICATIONS
Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / Deutsch
Part No:
YDTS24F13-35SNV001
Alias/AKA:
DTS24F13-35SN[V001]
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694020
COO:
MX
ECCN:
EAR99
Supplier Standard Pack:
1
Package Type:
Bag
Number of Positions:
22
Shell Base Material:
Aluminum
Circular Connector Type:
Receptacle
Shielded:
Yes
Number of Signal Positions:
22
Number of Power Positions:
0
Shell Plating Material:
Electroless Nickel
Operating Temperature Range:
-65 – 200 °C, -85 – 392 °F
Wire Size:
22 – 26 AWG, .15 – .4 mm²
Circular Connector Insulation Material Type:
Hard Dielectric/Silicone
Polarization Code:
Normal
Contact Layout Arrangement:
Circular
Sealable:
Yes
Contact Current Rating (Max):
5 A
Shell Type:
Jam Nut Receptacle
Circular Connector Shell Size:
C (13)
Circular Connector Contact Type:
Pin/Socket
Connector Mounting Type:
Panel Mount
Connector System:
Wire-to-Wire
Contacts Preloaded:
No
Mating Alignment Type:
Polarization
Mating Retention:
Without
Reverse Gender:
No
Hermetically Sealed:
No
Alignment Keyed:
Clocking
Product Type:
Connector Assembly
Centerline (Pitch):
.1 in, .06 mm
Connector & Contact Terminates To:
Wire & Cable
Circuit Application:
Power & Signal
IN STOCK: 16
Can Ship immediately
Factory Lead-Time 32 Weeks
Price (USD)
Qty
Unit Price
1
$705.16
5
$703.40
10
$701.64
15
$699.89
30
$357.47
45
$243.33
59
+
$238.46
