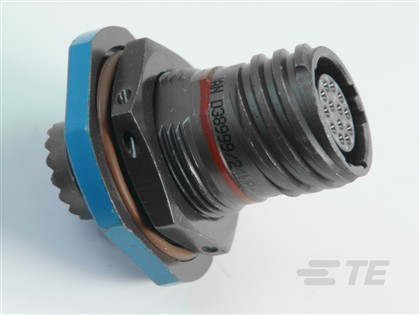

YACT24JA35JNV00100
TE Connectivity / DeutschACT SERIES JAM NUT RECEPTACLE ENVELOPE
RoHS Non-Compliant
Bag Packaging
Discontinued
DESCRIPTION
ACT SERIES JAM NUT RECEPTACLE ENVELOPE
Search Keywords: YACT24JA35JNV00100
SPECIFICATIONS
Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / Deutsch
Part No:
YACT24JA35JNV00100
Unit of Measure:
Per Each
RoHS:
No
HTS:
8536694020
COO:
MX
ECCN:
EAR99
Supplier Standard Pack:
1
Package Type:
Bag
O-Ring Material:
Silicone
Panel Thickness:
.062 – .126 in, 1.58 – 3.2 mm
Number of Signal Positions:
6
Entry Style:
Rear Insertion
Contact Current Rating (Max):
5 A
Circuit Application:
Signal
Environmental Protection:
Yes
Mating Retention Type:
Triple Start Threaded
Wire Size:
28 – 22 AWG, .08 – .33 mm²
Fluid Resistance:
Yes
Alignment Keyed:
Clocking
Position Locations Omitted:
All
Voltage:
1300 Vrms
Connector Mounting Type:
Panel Mount
Panel Mount Feature:
With
Reverse Gender:
No
Assembly Length:
1.3 in, 33 mm
Circular Connector Insulation Material Type:
Hard Dielectric/Silicone
Keying & Polarized Position Locations:
N
Peripheral Seal Material:
Silicone
Hermetically Sealed:
No
Circular Connector Shell Size:
9
Circular Connector Contact Type:
Socket
Fluid Type:
Coolanol 25 , M2-V , MIL-DTL-5624 (JP-4,JP-5) , MIL-DTL-83133 (JP-8) , MIL-PRF-23699 , MIL-PRF-5606 , MIL-PRF-7808 , SEA-AMS1424 Type I
Factory Installed Backshell:
No
Operating Temperature Range:
-65 – 200 °C, -85 – 392 °F
Environmental Protection Type:
Elastomer Sealed
Polarization Code:
N
Sealable:
Yes
Mating Alignment Type:
Keyed
Shell Type:
Jam Nut Receptacle
Accepts Wire Insulation Diameter Range:
.03 – .054 in, .76 – 1.37 mm
Shell Plating Material:
Cadmium, O.D.
Feedthrough Type:
No
Product Type:
Connector
Assembly Type:
Electrical Connector
Panel Mount Feature Type:
Jam Nut
Shielded:
Yes
Contacts Preloaded:
No
Weight:
9.8 g, .0216 lb
Contact Quantity (Size 22D):
6
Durability Rating:
1500 Cycles
Number of Positions:
6
Mating Retention:
With
Packaging Quantity:
1
Keying:
Keyway Polarization N
Shell Base Material:
Composite
Operating Voltage:
400 VAC, 550 VDC
Number of Power Positions:
0
Circular Connector Type:
Receptacle
Contact Layout Arrangement:
A35
Connector System:
Cable-to-Panel
Life Cycle:
Discontinued
This product is discontinued, but still in stock
Possible Replacement options available. See Alternatives
