DTS24K11-35AN by te connectivity / deutsch

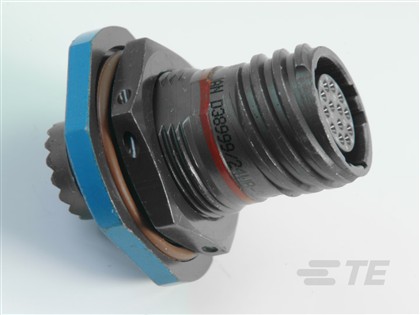

Image is representational - see mfr. specs

DTS24K11-35AN

TE Connectivity / Deutsch

DTS 24 K 11-35 AN ...

Datasheet
RoHS Compliant
Pack Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

DTS24K11-35AN is a MIL-DTL-38999 Series IV circular connector featuring a shell size 11 (military designation B) with a 35-contact insert arrangement (11-35). This connector is designed for demanding aerospace, defense, and marine applications requiring reliable signal, power, and control transmission in harsh environments. The connector incorporates a square flange receptacle design with bayonet coupling, RFI fingers, and peripheral ring seals to ensure environmental protection and electromagnetic shielding. Key dimensional specifications include a maximum outer diameter (ØA) of 25.0 mm and contact hole diameters (ØC, ØD, ØE) ranging from 13.67 mm to 15.06 mm, providing robust mechanical and electrical performance. The 11-35 insert arrangement supports multiple contact configurations suitable for complex interconnect requirements in avionics, ground support equipment, and military systems where durability and signal integrity are critical.

Search Keywords: DTS24K1135AN

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / Deutsch
Part No:
DTS24K11-35AN
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694040
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
Pack
Alignment Keyed:
Clocking
Accessory Color:
Natural

IN STOCK: 8

Can Ship immediately

Factory Lead-Time 9 Weeks

Price (USD)

Qty
Unit Price
1
$925.87
5
$923.56
10
$921.25
13
$918.95
25
$488.13
38
$327.90
50 +
$321.34
Log in for special pricing Click for Quote Price Match Request
