983-6RS08-03S6L by te connectivity / deutsch

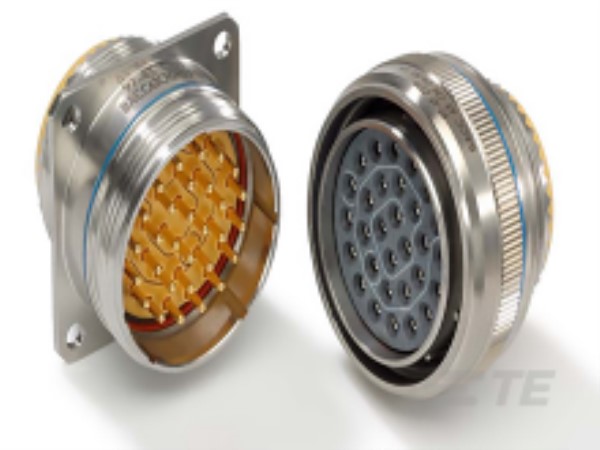

Image is representational - see mfr. specs

983-6RS08-03S6L

TE Connectivity / Deutsch

983-6RS 08-03 S6 L ...

Datasheet
RoHS Compliant
Pack Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

ZPF000000000008386 is a DEUTSCH 983 Series sealed connector designed for extreme reliability in harsh aerospace, defense, and marine environments. The connector is available in multiple sizes (08 through 24) with contact configurations ranging from 2 to 41 contacts, supporting various contact sizes (12, 16, 20, and 22). Key specifications include dimensional parameters such as maximum overall lengths (A Max: 27.38–55.42 mm), maximum widths (B Max: 24.89–52.81 mm), and panel nut tightening torques ranging from 7 m.N to 29 m.N depending on connector size. The connector features stainless steel construction with weights ranging from 29 g to 122 g, ensuring durability and corrosion resistance in demanding applications. These connectors are ideal for military avionics, aerospace systems, and marine equipment where sealed, reliable connections are critical.

Search Keywords: 9836RS0803S6L

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / Deutsch
Part No:
983-6RS08-03S6L
Alias/AKA:
ZPF000000000008386
Unit of Measure:
Per Each
RoHS:
Yes
COO:
FR
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
Pack
Operating Temperature Range:
-65 – 200 °C, -85 – 392 °F
Durability Rating:
500 Cycles
Shell Material:
Aluminum
Approved Standards:
EN2997
Keying:
Keyway Polarization 6
Reverse Gender:
No
Termination Method to Wire & Cable:
Crimp
Shell Type:
Plug
Number of Power Positions:
0
Factory Installed Backshell:
Without
Prewired:
No
Mating Retention Type:
Threaded
Alignment Keyed:
Clocking
Preloaded:
No
Sealable:
Yes
Mating Retention:
With
Accessory Color:
Natural
Contact Current Rating (Max):
7.5 A
Connector Style:
Plug
Number of Signal Positions:
3
Hermetically Sealed:
No
Contact Layout Arrangement:
8 – 3
Circuit Application:
Power & Signal & Data
Number of Positions:
3
Wire Size:
20 – 24 AWG, .2 – .52 mm²
Connector Mounting Type:
Panel
Shell Plating Material:
Nickel
Shell Size:
08
Insulation Material:
Thermoset
Mating Alignment:
With
Mating Alignment Type:
Keyed
Product Type:
Connector
Contact Type:
Less Socket
Connector System:
Wire-to-Panel
Assembly Type:
Electrical Connector
Flange:
Without
Shielded:
Yes
Shell Base Material:
Aluminum
Circular Connector Shell Size:
08

IN STOCK: 15

Can Ship immediately

MOQ for In Stock Qty: 2

MOQ for out of Stock Qty: 2

Factory Lead-Time 15 Weeks

Price (USD)

Qty
Unit Price
2
$168.87
5
$168.45
10
$168.02
14
$167.61
27
$92.02
41
$63.96
54 +
$62.69
