DT15-12PB by te connectivity / deutsch automotive

DT15-12PB

TE Connectivity / Deutsch Automotive

HDR, 12P, BLK, ST, NI/CU, B ...

Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

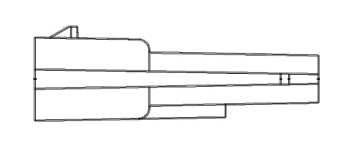

DESCRIPTION

The TE Connectivity/Deutsch Automotive part DT15-12PB is a rugged and reliable receptacle header designed for automotive applications. It is a 12-pin connector with a 180-degree orientation, making it ideal for connecting various electrical components in vehicles. Part of the DT series, this receptacle header offers a high degree of protection against harsh environments, including moisture, dust, and vibration. Its robust design ensures reliable performance, even in demanding automotive conditions. Suitable for a wide range of applications, this connector provides secure and efficient connectivity for all your automotive wiring needs.

Search Keywords: DT1512PB

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / Deutsch Automotive
Part No:
DT15-12PB
RoHS:
Yes
HTS:
8536694040
COO:
US
ECCN:
EAR99
Supplier Standard Pack  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Operating Temperature (Max):
100 °C, 105 °C, 110 °C, 120 °C, 125 °C, 65 °C, 70 °C, 75 °C, 80 °C, 85 °C
Sealable:
Yes
Number of Sections:
2
Degree of Protection:
Not Tested
Packaging Type:
Box
PCB Mount Orientation:
Vertical
Primary Product Color:
Gray
PCB Mount Alignment:
With
Connector System:
Wire-to-Board , Wire-to-Device
Number of Rows:
2
Connector & Contact Terminates To:
Printed Circuit Board
Operating Temperature Range:
-55 – 125 °C, -67 – 257 °F
Packaging Quantity:
125
PCB Mount Retention Type:
Solder Tail
Length:
1.388 in, 35.25 mm
Termination Method to Printed Circuit Board:
Through Hole - Solder
Number of Positions:
12
Hybrid Header:
No
Mating Pin Diameter:
.059 in, 1.5 mm
Centerline (Pitch):
.175 in, 4.44 mm
Mounting Holes:
With
Locking Interface:
With
Voltage Rating (Max):
250 VAC, 12 VDC
Contact Mating Area Plating Material:
Nickel (Ni)
Connector Code:
A
Panel Mount Feature:
With
Operating Voltage:
250 VAC
Nominal Voltage Architecture:
12 V, 125 V, 24 V, 240 V, 42 V, 48 V, 80 V, 90 V
Width:
2.331 in, 59.2 mm
UL Flammability Rating:
UL 94V-0
PCB Mount Retention:
With

IN STOCK: 78

Can Ship immediately

Factory Lead-Time 13 Weeks

Qty
Unit Price
1
$14.45
10
$9.79
25
$9.65
50
$9.44
100
$9.30
250
$9.19
500 +
$8.99
