DT06-6S-E008 by te connectivity / deutsch automotive

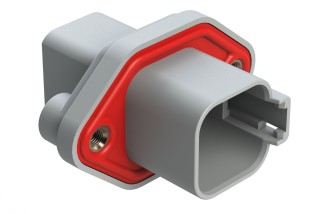

Image is representational - see mfr. specs

DT06-6S-E008

TE Connectivity / Deutsch Automotive

PLG, 6P, GRY, N, XCAP ...

Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The TE Connectivity/Deutsch Automotive part DT06-6S-E008 is a high-quality, reliable plug that is specifically designed for automotive applications. It features 6 pins and is color-coded in a sleek gray hue, ensuring easy identification and installation. With a rugged design and excellent resistance to environmental factors, this plug guarantees optimal performance even in harsh conditions. Additionally, its unique XCAP technology enhances its durability and enhances electrical performance. Overall, the DT06-6S-E008 is a top-notch plug solution that provides a secure and efficient connection for your automotive needs.

Search Keywords: DT066SE008

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / Deutsch Automotive
Part No:
DT06-6S-E008
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8538906000
COO:
MX
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
UL Flammability Rating:
12mm Flame Test per Standard UL-94
Row-to-Row Spacing:
.175 in, 4.45 mm
Cable Exit Angle:
180 °
Height:
.946 in, 24.03 mm
Agency/Standard:
SAE J2030
Polarized:
Yes
Centerline (Pitch):
.359 in, 9.12 mm
Sealable:
Yes
Serviceable:
Yes
Mating Pin Diameter:
.0625 in, 1.59 mm
Strain Relief:
Add By Accessory
Packaging Method:
Box
Operating Voltage:
250 VAC
Connector System:
Wire-to-Wire
Terminal Position Assurance:
Yes
Hybrid Connector:
No
Length:
1.701 in, 43.21 mm
Number of Positions:
6
Primary Locking Feature:
Integrated in Housing
Body Material:
PA GF
Number of Rows:
2
Degree of Protection:
IP68 , IP6K9K
Blank Cavity Position:
0
Packaging Quantity:
550
Contact Current Rating (Max):
13 A
Connector & Housing Type:
Housing for female terminals
Connector Position Assurance Capable:
No
Operating Temperature Range:
-55 – 125 °C, -67 – 257 °F
Width:
.814 in, 20.68 mm
Primary Product Color:
Gray
Circuit Application:
Power & Signal
Nominal Voltage Architecture:
12 V, 24 V, 48 V
Mounting Feature:
Without
Operating Temperature (Max):
125 °C, 257 °F

IN STOCK: 733

Can Ship immediately

Minimum Order Quantity: 5

Factory Lead-Time 13 Weeks

Qty
Unit Price
5
$5.88
50
$4.10
100
$4.01
250
$3.97
500
$3.96
1,000
$3.76
2,500
$3.54
5,000 +
$3.43
Log in for special pricing Click for Quote Price Match Request
Please Note: Tariffs may apply for U.S. shipments
Older Equivalent
