DT04-08PA-C015 by te connectivity / deutsch automotive
Image is representational - see mfr. specs

DT04-08PA-C015

TE Connectivity / Deutsch Automotive

REC, 8P, GRY, E, A

Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

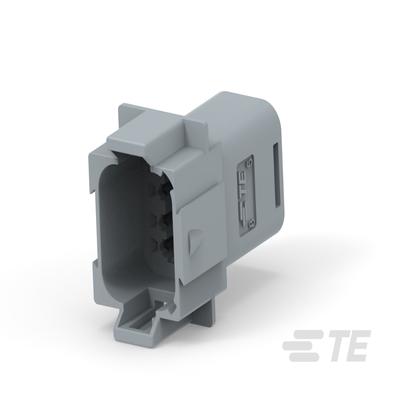

TE Connectivity's Deutsch Automotive DT04-08PA-C015 is a high-quality receptacle connector featuring 8 pins in a durable gray housing. This connector is designed for efficient and reliable electrical connections in automotive applications.

Search Keywords: DT0408PAC015

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / Deutsch Automotive
Part No:
DT04-08PA-C015
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8538906000
COO:
MX
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Mating Pin Diameter:
.0625 in, 1.59 mm
Operating Voltage:
250 VAC
Row-to-Row Spacing:
.175 in, 45.45 mm
Operating Temperature Range:
-55 – 125 °C, -67 – 257 °F
Connector & Housing Type:
Housing for Male Terminals
Agency/Standard:
SAE J2030
Operating Temperature (Max):
125 °C, 257 °F
Connector Code:
A
Primary Product Color:
Gray
Blank Cavity Position:
0
Hybrid Connector:
No
Contact Current Rating (Max):
13 A
Connector Mounting Type:
Cable Mount (Free-Hanging) , Fixing Screw
Degree of Protection:
IP68 , IP6K9K
Terminal Position Assurance:
Yes
Packaging Method:
Box
Number of Positions:
8
Strain Relief:
Add By Accessory
Length:
1.798 in, 45.67 mm
Packaging Quantity:
350
Cable Exit Angle:
180 °
Primary Locking Feature:
Integrated in Housing
UL Flammability Rating:
12mm Flame Test per Standard UL-94
Connector Position Assurance Capable:
No
Width:
1.435 in, 36.45 mm
Polarized:
Yes
Height:
.94 in, 23.88 mm
Mounting Feature:
With
Connector System:
Wire-to-Wire
Nominal Voltage Architecture:
12 V, 24 V, 48 V
Number of Rows:
2
Body Material:
PA GF
Serviceable:
Yes
Sealable:
Yes
Circuit Application:
Power & Signal
Centerline (Pitch):
.359 in, 9.12 mm
  Possible Replacement options available.  See Alternatives

IN STOCK: 1,026

Can Ship immediately

Minimum Order Quantity: 10

Factory Lead-Time 13 Weeks

Qty
Unit Price
10
$2.79
100
$2.20
250
$2.14
500
$2.09
1,000
$2.03
2,500 +
$1.89
Log in for special pricing Click for Quote Price Match Request

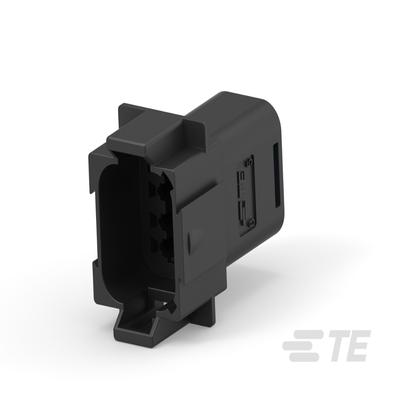

Older Equivalent
2600038-2
2600038-2
