969028-5 by te connectivity / amp brand
Image is representational - see manufacturer specifications
TE Connectivity / AMP Brand Authorized Distributor

969028-5

TAB A 1.6x0.6 CONTACT CS SWS Ag ...

View Datasheet Ask the Datasheet
RoHS Compliant
TRAY Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

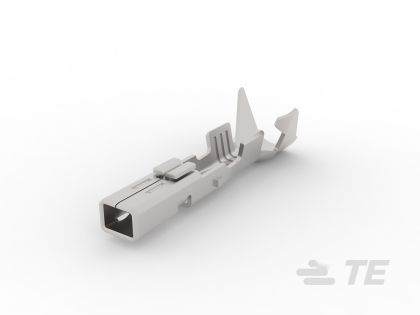

969028-5 is an AMP MCP 1.5K tab contact designed for use in HDSCS connector systems. This stamped and formed tab contact is supplied in strip form and accommodates wire sizes from 0.2 to 0.5 mm² with insulation diameters of 1.15 to 1.6 mm. The contact features CuSn4 (copper-tin alloy) material with select gold plating for reliable electrical connections. It is part of TE Connectivity's HDSCS connector series, which is engineered to protect sensitive electrical systems from vibration, moisture, dust, dirt, salt, and airborne particles in harsh industrial and commercial transportation environments. Compatible hand tool part number 539635-1 with die set 539663-2 is recommended for proper crimping.

Search Keywords: 9690285

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
969028-5
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536904000
COO:
CZ
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
4000
Package Type:
TRAY
Primary Locking Feature:
Locking Lance
Packaging Quantity:
4000
Crimp Type:
F-Crimp
Typical Current Rating:
10 A
Sealable:
Yes
Agency/Standard:
DIN 72 551 Part 5 and 6
Terminal Transmits:
0 – 24 A (Low Power)
Interface Plating:
Silver (Ag)
Packaging Method:
Package
Terminal Type:
Tab
Receptacle Style:
180°
Termination Method to Wire & Cable:
Crimp
Wire Size:
24 – 20 AWG, .2 – .5 mm²
Mating Tab Width:
.063 in, 1.6 mm
Mating Tab Thickness:
.024 in, .6 mm
Wire Size Search:
20 AWG, 21 AWG, 22 AWG, 23 AWG, 24 AWG, .2 mm², .25 mm², .3 mm², .4 mm², .5 mm²
Operating Temperature Range:
-40 – 130 °C, -40 – 266 °F
Tab Length:
.88 in, 22.4 mm
Wire Contact Termination Area Plating Material:
Tin
Operating Temperature (Max):
130 °C, 266 °F
Contact Size:
1.6mm
Contact Fabrication:
Stamped & Formed

FREQUENTLY ASKED QUESTIONS

Is 969028-5 RoHS compliant?

Yes, 969028-5 is RoHS compliant.

What is the lead time for 969028-5?

The standard lead time for 969028-5 is approximately 18 days. In-stock quantities ship from Master Electronics.

  Different packaging options available.  See Alternatives

IN STOCK: 2,100

Can Ship immediately

On Order: 12,000   can ship 11/4/26

Minimum Order Quantity: 100

Factory Lead-Time 18 Weeks

Price (USD)

Qty
Unit Price
100
$0.4112
500
$0.3928
1,000
$0.3851
4,000
$0.3776
8,000
$0.3600
12,000
$0.3229
16,000
$0.3221
28,000 +
$0.3192
Supplier's Standard Package
Log in for special pricing Click for Quote Price Match Request

Tools/3D Models

Product Guides

Product Changes

Accessories

539960-1

Extraction Tool for Micro TIMER II, III, IV; TAB 1.6

1579008-9

Insertion Tool for AMP MCP 1.5 & 2.8 and Housings; 284848 & 284844
