821811-SF by te connectivity / amp brand

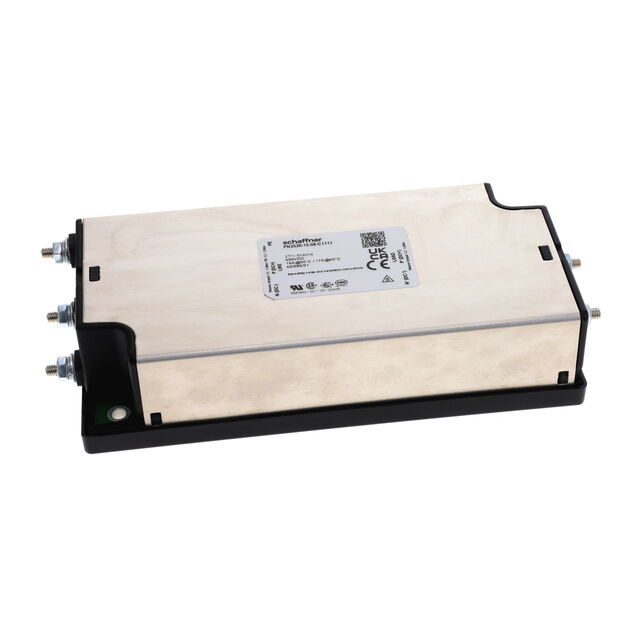

Image is representational - see mfr. specs

821811-SF

TE Connectivity / AMP Brand

Single phase filter 1HU 15 A threaded bolt conne ...

Datasheet
RoHS Compliant
Box Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 821811-SF is a very high-performance single-phase EMC/EMI filter from the FN2520 series, designed for applications requiring excellent electromagnetic compatibility in compact form factors. This two-stage filter operates at rated voltages of 277 VAC / 400 VDC (CQC: 250 VAC / 250 VDC) with operating frequency from DC to 60 Hz, and supports rated currents from 10 to 32 A at 50°C. The filter features low profile design fitting within 1 height unit (HU) of a 19" rack application, with power loss ranging from 8.0 W to 13.2 W depending on current rating, and leakage current of 0.82 mA under normal operating conditions. Available terminal options include fast-on, wire leads, M4 screw, and push-in terminals, making it suitable for robotics, datacenters, and various industrial applications requiring high-performance EMI suppression.

Search Keywords: 821811SF

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
821811-SF
Alias/AKA:
FN2520-15-08-C1111
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8504508000
COO:
TH
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
15
Package Type:
Box

IN STOCK: 86

Can Ship immediately

MOQ for In Stock Qty: 2

MOQ for out of Stock Qty: 2

Factory Lead-Time 17 Weeks

Price (USD)

Qty
Unit Price
2
$64.99
4
$64.83
8
$48.62
12
$45.38
15 +
$44.47
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request

Tools/3D Models

Product Guides
