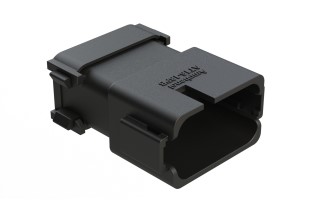

776539-3 by te connectivity / amp brand
Image is representational - see manufacturer specifications
TE Connectivity / AMP Brand Authorized Distributor

776539-3

AS 16, 12P CAP ASSY, RD, KEY 3 ...

View Datasheet Ask the Datasheet
RoHS Compliant
BAG Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

776539-3 is an AMPSEAL 16 series 12-way cap connector designed for environmentally sealed electrical connections in industrial and commercial transportation applications. This connector features a C key configuration with a black housing and yellow PLR (Positive Lock Retainer), along with a reduced diameter seal for secure wire sealing. The contact size is 1.58 mm, and the connector includes an integrated wedge/TPA (Terminal Position Assurance) for reliable contact retention. Ideal for harsh environment applications requiring robust, sealed multi-pin connections in automotive, agricultural, and industrial equipment.

Product Highlights:

  • Connector
  • Not Preloaded
  • Connector Style = Receptacle
  • Accepts Contact Gender = Pin
  • 4.50 mm Centerline

Search Keywords: 7765393

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
776539-3
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8538906000
COO:
MX
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
1
Package Type:
BAG
Mounting:
Cable Mount
Body Orientation:
Straight
Gender:
RCP
Number of Contacts:
12

FREQUENTLY ASKED QUESTIONS

Is 776539-3 RoHS compliant?

Yes, 776539-3 is RoHS compliant.

What is the lead time for 776539-3?

The standard lead time for 776539-3 is approximately 13 weeks. In-stock quantities ship from Master Electronics.

IN STOCK: 2,000

Ships today, if you order in

Manufacturer Stock: 880   can ship 11/30/26

Minimum Order Quantity: 5

Factory Lead-Time 13 Weeks can ship 2/15/27

Price (USD)

Qty
Unit Price
5
$4.02
50
$3.59
100
$3.53
250
$3.36
500
$3.32
1,000
$3.00
2,500
$2.94
5,000 +
$2.93
