770166-2 by te connectivity / amp brand

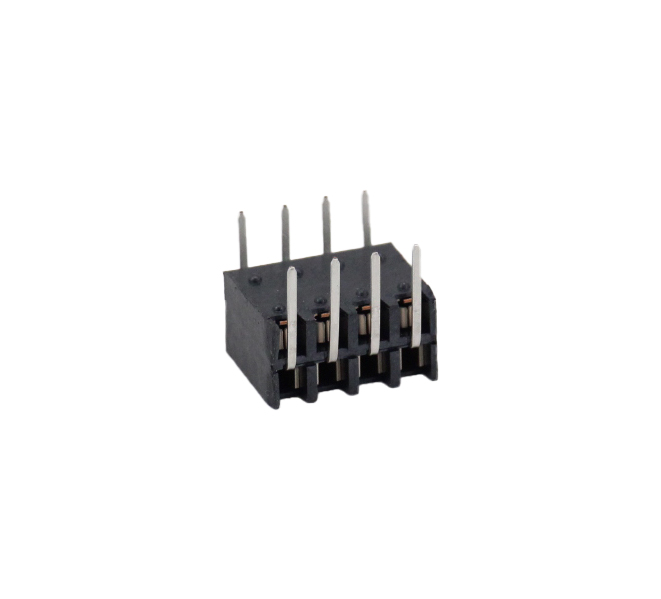

Image is representational - see manufacturer specifications
TE Connectivity / AMP Brand Authorized Distributor

770166-2

02P MINI-UMNL ASSY VO SNAU ...

View Datasheet Ask the Datasheet
RoHS Non-Compliant
Bag Packaging
Accessories
Request Programming Quote
Discontinued & Replaced
Certificate of Compliance

DESCRIPTION

770166-2 is a 2-circuit in-line vertical pin header designed for use with Mini-Universal MATE-N-LOK connectors in wire-to-board applications. This header features drain holes and is available with duplex plating finish, with an A dimension of 0.387 inches (9.83 mm). The header housing is made from UL94V-0 rated 6/6 nylon material and mates with plug housings 172165-1 (Mini-Universal MATE-N-LOK) and 794184-1 (Mini-Universal MATE-N-LOK 2) using socket contacts. This RoHS compliant connector is suitable for PCB board mounting applications requiring reliable wire-to-board connections.

Product Highlights:

  • Header
  • Mini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2
  • Number of Circuits = 2
  • 4.14 mm Centerline, Matrix
  • In-Line Contact Layout

Search Keywords: 7701662

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
770166-2
Unit of Measure:
Per Each
RoHS:
No
HTS:
8536694040
COO:
US
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
200
Package Type:
Bag
Type:
Power
Body Orientation:
Straight
Mounting:
Through Hole
Gender:
HDR
Number of Contacts:
2
Termination Method:
Solder
Maximum Voltage Rating:
600 VAC
Maximum Current Rating:
9.5/Contact A
Operating Temperature:
N/A
Life Cycle:
Discontinued & Replaced

FREQUENTLY ASKED QUESTIONS

Is 770166-2 discontinued?

Yes, 770166-2 from Te Connectivity / Amp Brand is discontinued (end-of-life July 2024). Master Electronics is an authorized distributor and may have remaining stock or a recommended replacement for it.

Is 770166-2 RoHS compliant?

No, 770166-2 is not RoHS compliant.

What is the lead time for 770166-2?

The standard lead time for 770166-2 is approximately 12 weeks. In-stock quantities ship from Master Electronics.

  This product is discontinued, but still in stock
  This product is NOT RoHS Compliant.  See Alternatives

IN STOCK: 48,830

Can Ship immediately

Minimum Order Quantity: 200

Multiple: 200

Price (USD)

Qty
Unit Price
200
$0.910
400
$0.889
600
$0.887
1,000
$0.870
2,600
$0.852
5,000
$0.841
7,600
$0.836
10,000 +
$0.834
Supplier's Standard Package
Log in for special pricing Click for Quote Price Match Request

Tools/3D Models

Product Guides

Product Changes

Accessories

794184-1

02P MINI UMNL2 PLUG HSG UL94V0

172165-1

This 2 circuit plug from TE’s Mini-Universal MATE-N-LOK Connectors series can be used for ...
