770052-1

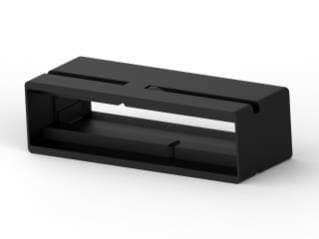

Name: 770052-1 Te Connectivity Amp Brand Discrete Wire Housing
Brand: Te Connectivity Amp Brand
SKU: 10491356
Availability: InStock

06P UMNL II CAP REAR 94VO ...

View Datasheet

Ask the Datasheet

RoHS Compliant

BAG Packaging

Certificate of Compliance

DESCRIPTION

770052-1 is the rear housing section component for a 6-circuit Universal MATE-N-LOK II connector cap housing assembly. This connector system is part of the 5.0 mm Power Key Connectors (5.0 PKC) family, designed for wire-to-board power circuit applications in home appliances, particularly gas appliances. The housing is constructed from nylon with a UL 94V-0 flammability rating and features a 0.250 inch (6.35 mm) centerline spacing. The connector system operates at a voltage rating of 600 V AC or DC and incorporates a compact design with a 19.4 mm mated height. The rear housing component works in conjunction with the front housing section (770051-1) to form complete cap housing kits, providing reliable mechanical and electrical connections with clear clicking sound feedback during contact insertion and double lock plate loading for secure contact retention.

Product Highlights:

Housing
Universal MATE-N-LOK II
Not CompactPCI
6.35 x 6.35 mm Centerline, Matrix
Number of Circuits = 6

Potential Applications:

Search Keywords: 7700521

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

TE Connectivity / AMP Brand

Part No:

770052-1

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8538906000

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
