5-794681-4 by te connectivity / amp brand

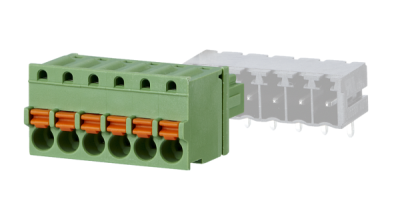

Image is representational - see mfr. specs

5-794681-4

TE Connectivity / AMP Brand

24P MICRO MNL ASSY,VRT,THRU,LF

Datasheet
RoHS Compliant
Tray Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The TE Connectivity / AMP Brand part 5-794681-4 is a 24-pin Micro MNL assembly designed for vertical mounting with through-hole connections. This assembly is lead-free and provides a reliable and compact solution for various electronic applications.

Search Keywords: 57946814

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
5-794681-4
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694040
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
91
Package Type:
Tray
Sealable:
No
Mating Retention Type:
Locking Tab
Multiple Contact Types:
Without
Termination Method to Printed Circuit Board:
Through Hole - Solder
Contact Retention Within Housing:
Without
Connector & Contact Terminates To:
Printed Circuit Board
UL Flammability Rating:
UL 94V-0
Number of Signal Positions:
0
Contact Current Rating (Max):
5 A
Number of Positions:
24
Mating Retention:
With
Connector Mounting Type:
Board Mount
Housing Material:
Nylon
PCB Mount Alignment:
Without
Connector System:
Wire-to-Board
Mating Alignment:
With
PCB Contact Termination Area Plating Material:
Tin
Rectangular Power Connector Type:
Header
PCB Mount Orientation:
Vertical
Circuit Application:
Power
Panel Mount Feature:
Without
Contact Type:
Pin
Connector & Housing Type:
Plug
PCB Mount Retention:
With
Packaging Quantity:
91
Number of Power Positions:
24
Mating Alignment Type:
Polarization
Number of Rows:
2
Contact Mating Area Plating Material:
Tin
Housing Color:
Black
UL Rating:
Recognized
Header Type:
Fully Shrouded
Contact Mating Area Plating Material Thickness:
15 µin, .38 µm
Operating Temperature Range:
-40 – 105 °C, -40 – 221 °F
Centerline (Pitch):
.118 in, 3 mm
Wire Size:
30 – 20 AWG, 100.5 – 1022 CMA, .051 – .517 mm²
PCB Mount Retention Type:
Boardlock , Retention Bump
Termination Post & Tail Length:
.125 in, 3.18 mm
Row-to-Row Spacing:
.118 in, 3 mm
PCB Thickness (Recommended):
.062 in, 1.57 mm
Operating Voltage:
250 VAC, 250 VDC
Packaging Method:
Box & Tray , Tray
CSA Rating:
Certified , LR 7189
Agency/Standard:
CNR , USR
Glow Wire Rating:
GWT 750°C (Without Flame)
Approved Standards:
UL E28476
Glow Wire Material Rating:
Material with GWFI 850°C , Material with GWIT ≥ 775°C

IN STOCK: 0

MOQ for out of Stock Qty: 251

Factory Lead-Time 14 Weeks

Qty
Unit Price
251
$5.87
501
$3.62
751
$2.87
1,001 +
$2.81
Log in for special pricing Click for Quote Price Match Request
