4-643813-0 by te connectivity / amp brand

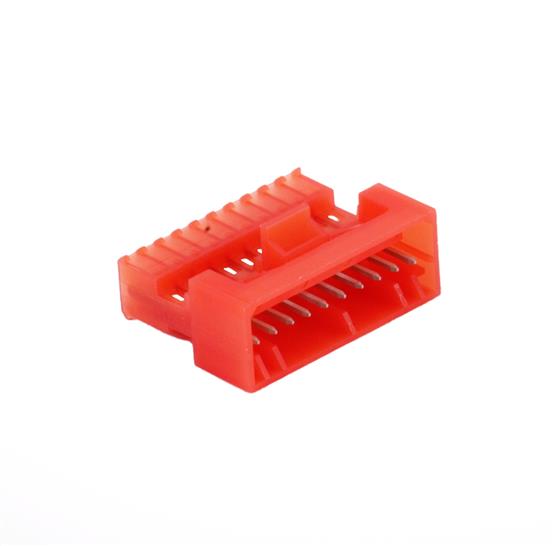

Image is representational - see manufacturer specifications
TE Connectivity / AMP Brand Authorized Distributor

4-643813-0

Rectangular Connector - Receptacle - Female Socket - 10 Positions - 0.100"(2.54mm) Pitch - 22AWG - Locking Ramp - IDC Cable Termination - Right Angle. ...

View Datasheet Ask the Datasheet
RoHS Compliant
BAG Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

The 4-643813-0 from TE Connectivity / AMP Brand is right angle rectangular connector female socket receptacle with 10 positions, 0.100"(2.54mm) pitch and IDC cable termination. This rectangular connector has locking ramp and accept 22AWG wire size. Operating temperature range is from -55 to 105 °C ( -67 to 221 °F ).

Product Highlights:

  • MTA-100 Connectors
  • Number of Positions = 10
  • Mating Type = Receptacle
  • Connector Type = Closed End
  • Wire-to-Board Application

Search Keywords: 46438130

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
4-643813-0
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694040
COO:
US
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
500
Package Type:
BAG
Type:
IDC Connector
Body Orientation:
Right Angle
Gender:
F
Mounting:
Cable Mount
Pitch:
2.54 mm
Number of Contacts:
10
Maximum Voltage Rating:
250 VAC
Maximum Current Rating:
5/Contact A
Termination Method:
IDT
Operating Temperature:
-55 to 105 °C

FREQUENTLY ASKED QUESTIONS

Is 4-643813-0 RoHS compliant?

Yes, 4-643813-0 is RoHS compliant.

What is the lead time for 4-643813-0?

The standard lead time for 4-643813-0 is approximately 29 weeks. In-stock quantities ship from Master Electronics.

IN STOCK: 100

Can Ship immediately

Buy all 100 in-stock or the regular minimum order quantity of 500

On Order: 12,000   can ship 12/16/26

Stock lot only: 100

Minimum Order Quantity: 500

Multiple: 500

Factory Lead-Time 29 Weeks

Price (USD)

Qty
Unit Price
1
$0.7854
500
$0.7140
1,000
$0.7090
2,500
$0.5660
5,000
$0.5620
7,500
$0.5590
10,000
$0.5560
15,000
$0.5530
25,000 +
$0.5460
Supplier's Standard Package
