36149 by te connectivity / amp brand

36149

TE Connectivity / AMP Brand

PIDG R 22-16 COMM 22-18 MIL 6 ...

Datasheet
RoHS Compliant
Box Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

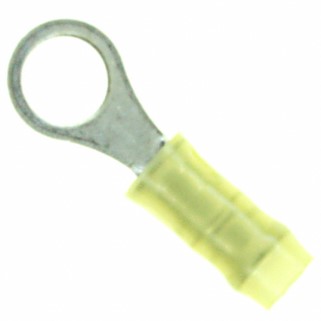

The TE Connectivity / AMP Brand part 36149 is a reliable and high-quality electrical connector designed to meet the demands of industrial and military applications. With a short description, this connector is commonly used to securely and efficiently terminate wires for a wide range of electrical systems. Its PIDG (Pre-Insulated Diamond Grip) design ensures a strong and durable connection, while its compatibility with 22-16 AWG wires in commercial applications and 22-18 AWG wires in military applications makes it incredibly versatile. Whether you need to connect wires in a commercial or military setting, this TE Connectivity / AMP Brand part 36149 is the go-to solution for exceptional performance and longevity.

Product Highlights:

  • Terminal Shape = Ring Tongue
  • Receptacle Style = Straight
  • Body Style = PIDG
  • Barrel Type = Closed Barrel
  • Wire/Cable Type = Regular Wire

Search Keywords: 36149

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
36149
Alias/AKA:
MS25036-101
RoHS:
Yes
HTS:
8536904000
COO:
US
ECCN:
EAR99
Supplier Standard Pack  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1000
Package Type:
Box

IN STOCK: 53,421

Can Ship immediately

On Order: 50,000   can ship 6/1/26

Minimum Order: 100

Factory Lead-Time 30 Weeks

Qty
Unit Price
100
$0.2492
500
$0.1791
3,000
$0.1737
5,000
$0.1668
8,000
$0.1660
25,000
$0.1651
50,000 +
$0.1643
Log in for special pricing

Tools/3D Models

Product Guides

Product Changes

Accessories

47386

DAHT PG PIDG 26-16 ASSY

59824-1

Crimp Tool - Hand - AMP TETRA PIDG/PLASTI-GRIP/PIDG Faston 22-10AWG Terminals & Splices.

58433-3

Crimp Tool: PRO-CRIMPER III Mnl Crimp Tool Frame (354940-1) + Die Set for PIDG, PLASTI-GRI ...

58423-1

Tool Die Set For Splices and Terminals - 10 to 22 AWG.

169404

CERTI-LOK DIE
