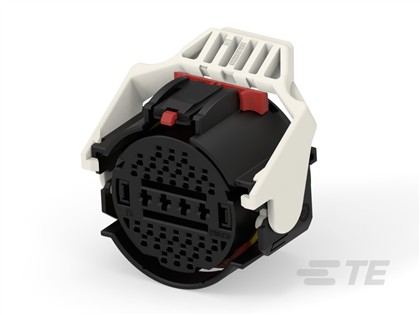

Image is representational - see mfr. specs

2138314-7

Name: 2138314-7
Brand: Te Connectivity Amp Brand
SKU: 48527240
Price: 149.9 USD
Availability: InStock

TE Connectivity / AMP Brand

36P SEALED HYBRID (32X 1.2, 4X 2.8) PLUG ...

Datasheet

RoHS Compliant

Bulk Packaging

DESCRIPTION

2138314-7 is a 36-position automotive connector housing designed for female terminals in wire-to-wire applications within the MCON Interconnection System. This circular, sealable housing features a mixed and hybrid connector design with 7 rows, supporting contact sizes of 1.2 mm and 2.8 mm with mating tab widths of 1.2 mm and 2.8 mm. The housing is constructed from PA 46 GF30 material with dimensions of 63.8 mm width, 54.4 mm length, and 63.8 mm height, and operates over a temperature range of -40°C to 130°C. Key features include keyed mating alignment, integrated primary locking, strain relief, and a 90° cable exit angle for cable mount (free-hanging) installations. This connector housing is ideal for automotive power circuit applications in 12 V, 24 V, and 48 V nominal voltage architectures.

Product Highlights:

Potential Applications:

Search Keywords: 21383147

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

TE Connectivity / AMP Brand

Part No:

2138314-7

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8538906000

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
