204509-1 by te connectivity / amp brand

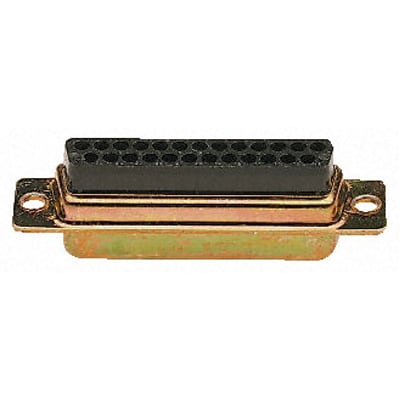

Image is representational - see manufacturer specifications
TE Connectivity / AMP Brand Authorized Distributor

204509-1

Plug for Male Contacts Housing D-Sub, High Density Connector 78 Position ...

View Datasheet Ask the Datasheet
RoHS Non-Compliant
BAG Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

The 204509-1 is a 78-way black Crimp Snap-in D-sub Plug with cadmium-plated steel shell. It comes with a stainless steel retention clip material and mounting holes. Connector Style D-Sub, High Density Connector Type Plug for Male Contacts Number of Positions 78 Number of Rows 4 Shell Size, Connector Layout 5 (DD, D) High Density Contact Type Signal Mounting Type Free Hanging (In-Line) Flange Feature Housing/Shell (Unthreaded) Features - Shell Material, Finish Steel, Cadmium Plated Applications Industrial

Product Highlights:

  • Connector
  • Product Series = 90
  • Density = High
  • Terminate To Wire
  • Number of Positions = 78

Search Keywords: 2045091

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
204509-1
Unit of Measure:
Per Each
RoHS:
No
HTS:
8538908180
COO:
MX
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
25
Package Type:
BAG
Mounting:
Panel Mount
Body Orientation:
Straight
Gender:
PL
Termination Method:
Crimp
Number of Contacts:
78
Maximum Voltage Rating:
N/A
Maximum Current Rating:
N/A
Operating Temperature:
N/A

FREQUENTLY ASKED QUESTIONS

Is 204509-1 RoHS compliant?

No, 204509-1 is not RoHS compliant.

What is the lead time for 204509-1?

The standard lead time for 204509-1 is approximately 34 weeks. In-stock quantities ship from Master Electronics.

  This product is NOT RoHS Compliant.  See Alternatives

IN STOCK: 0

On Order: 237   can ship 11/16/26
On Order: 500   can ship 2/1/27
On Order: 500   can ship 5/31/27

Factory Lead-Time 34 Weeks

Price (USD)

Qty
Unit Price
1
$53.33
5
$37.65
10
$32.43
25
$28.33
50
$26.68
100
$25.42
250 +
$23.84
Supplier's Standard Package
Log in for special pricing Click for Quote Price Match Request
