1-794067-1 by te connectivity / amp brand

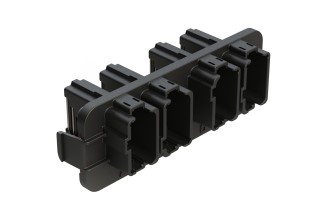

Image is representational - see mfr. specs

1-794067-1

TE Connectivity / AMP Brand

14P MINI UMNL HDR W/DH AU ...

Datasheet
RoHS Compliant
Bag Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The TE Connectivity AMP Brand Part 1-794067-1 is a high-quality connector designed for reliability and efficiency. This 14-position Mini Universal MATE-N-LOK (UMNL) Header with dual rows is engineered to optimize space and connectivity in electronic applications. Featuring a durable gold-plated finish, it ensures excellent conductivity and resistance to wear and corrosion. The header is equipped with a detachable housing (W/DH) that enhances versatility and ease of use in various configurations. Ideal for use in consumer electronics, automotive applications, and industrial systems, this connector provides a robust and secure electrical connection, ensuring optimal performance in demanding environments. Its compact footprint makes it an excellent choice for modern, space-constrained designs.

Product Highlights:

  • Header
  • Mini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2
  • Number of Circuits = 14
  • 4.14 x 4.14 mm Centerline, Matrix
  • Double-Row Contact Layout

Search Keywords: 17940671

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
1-794067-1
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694040
COO:
US
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
200
Package Type:
Bag
Type:
Power
Body Orientation:
Straight
Mounting:
Through Hole
Gender:
HDR
Number of Contacts:
14
Termination Method:
Solder
Maximum Voltage Rating:
600 VAC
Maximum Current Rating:
9.5/Contact A
Operating Temperature:
N/A

IN STOCK: 6,638

Can Ship immediately

MOQ for In Stock Qty: 5

MOQ for out of Stock Qty: 200

Factory Lead-Time 12 Weeks

Qty
Unit Price
5
$7.96
50
$7.28
100
$6.95
200
$5.59
400
$5.58
600
$5.18
800 +
$5.09
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request

Tools/3D Models

Product Guides

Product Changes

Accessories

770582-1

14 Position Rectangular Housing Connector Plug White 0.163" (4.14mm)

794202-1

14P MINI UMNL2 PLUG HSG UL94V0
