1761681-7 by te connectivity / amp brand

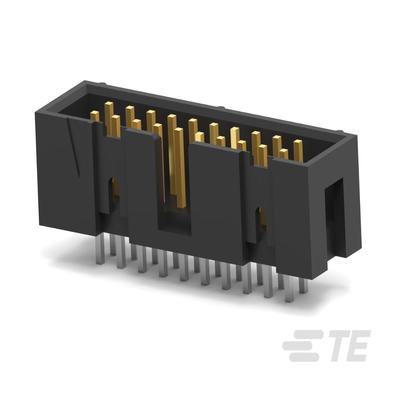

Image is representational - see manufacturer specifications
TE Connectivity / AMP Brand Authorized Distributor

1761681-7

IDC LOW PRO HDR 20P VERT HT BLACK ...

View Datasheet Ask the Datasheet
RoHS Compliant
TRAY Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

1761681-7 is a PCB edge connector header designed for board-to-board interconnection applications. The connector features a 2.54 mm [0.100 in] pitch spacing and phosphor bronze posts with gold plating (0.00038 mm min) on the mating area and tin-lead plating (0.00254 mm min) on the solder end, with nickel underplating (0.00127 mm min) on the entire post. The housing is constructed from PCT material rated UL94V-0 in black color. This connector is suitable for applications requiring reliable PCB edge connections with high-temperature material options available.

Product Highlights:

  • Connector Type = Pin Header
  • Low Profile
  • Number of Positions = 20
  • 2.54 x 2.54 mm Centerline, Matrix
  • PCB Mount Angle = Vertical

Search Keywords: 17616817

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
1761681-7
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694040
COO:
CN
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
80
Package Type:
TRAY
Type:
Shrouded Header
Body Orientation:
Straight
Gender:
HDR
Mounting:
Through Hole
Pitch:
2.54 mm
Number of Contacts:
20
Termination Method:
Solder

FREQUENTLY ASKED QUESTIONS

What replaces 1761681-7?

The recommended replacement for 1761681-7 is 636-2027 from TE Connectivity / Buchanan Brand, available from Master Electronics.

Is 1761681-7 RoHS compliant?

Yes, 1761681-7 is RoHS compliant.

What is the lead time for 1761681-7?

The standard lead time for 1761681-7 is approximately 7 weeks. In-stock quantities ship from Master Electronics.

IN STOCK: 9,741

Can Ship immediately

Minimum Order Quantity: 80

Multiple: 80

Factory Lead-Time 7 Weeks

Price (USD)

Qty
Unit Price
80
$1.55
160
$1.51
320
$1.50
560
$1.48
1,040
$1.47
2,560
$1.45
5,040
$1.41
7,520 +
$1.38
