1761608-5 by te connectivity / amp brand

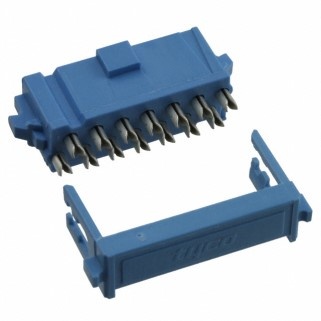

Image is representational - see mfr. specs

1761608-5

TE Connectivity / AMP Brand

Wire-To-Board Connector - 2.54 mm - 14 Contacts - Header - AMP-LATCH Series - Through Hole - 2 Rows. ...

Datasheet
RoHS Compliant
Tube Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

Easily mount this ejector 1761608-5 header connector from TE Connectivity onto your PCB project to support a variety of physical configuration options. This HDR connector's 14 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a maximum voltage rating of 250 VAC. Its pitch is 2.54 mm. It has a header type gender. This is a 2-row connector. It has a straight body orientation. This device has a maximum current rating of 1 A/contact. In order to ensure parts aren't damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This product is 18.49 mm tall. This connector has an operating temperature of -65 to 105 °C. It uses the solder termination method. 1761608-5 is housed in black thermoplastic.

Product Highlights:

  • Connector Type = Pin Headers
  • Low Profile
  • Number of Positions = 14
  • 2.54 x 2.54 mm Centerline, Matrix
  • PCB Mount Angle = Vertical

Search Keywords: 17616085

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
1761608-5
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694040
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
20
Package Type:
Tube
Type:
Ejector Header
Body Orientation:
Straight
Gender:
HDR
Mounting:
Through Hole
Pitch:
2.54 mm
Number of Contacts:
14
Maximum Voltage Rating:
250 VAC
Maximum Current Rating:
1/Contact A
Termination Method:
Solder
Operating Temperature:
-65 to 105 °C

IN STOCK: 129

Can Ship immediately

Minimum Order Quantity: 20

Multiple: 20

Factory Lead-Time 10 Weeks

Qty
Unit Price
20
$3.323
60
$3.251
100
$3.177
260
$3.112
500
$3.093
1,000
$3.054
2,500
$3.034
5,000 +
$3.019
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request
Please Note: Tariffs may apply for U.S. shipments

Tools/3D Models

Product Guides

Product Changes

Accessories

1658526-8

Rectangular Connector - Receptacle - Female Socket - 14 Position - 2 Rows - 0.100" (2.54mm ...

1658527-5

622-1430LF FEM SOCKT,LEAD FREE

1-1658528-2

636-1430LF=FEM SKT BLADE POL 1

1658620-2

14 NOVO MIL 15DP, LEAD FREE

1658621-2

This preassembled Novo Receptacle from TE is intended for use with Strain Relief carrying ...

1658622-2

Wire-To-Board Connector - 2.54 mm - 14 Contacts - Receptacle - AMP-LATCH Novo Series - IDC ...

1658623-2

The 1658623-2 is a 14-position, military-polarized Novo receptacle connector for terminati ...

Show 5 More
