171630-1 by te connectivity / amp brand

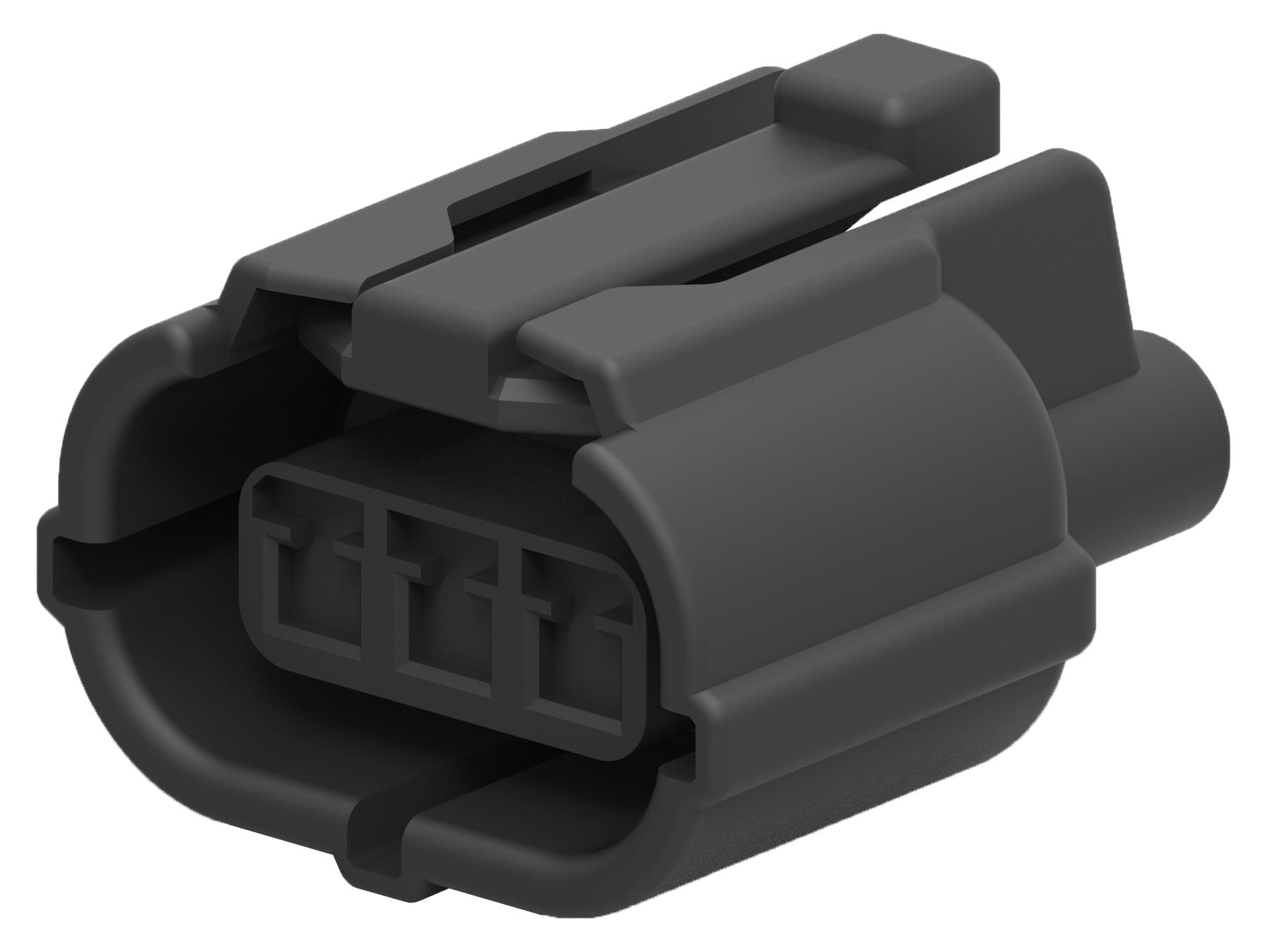

Image is representational - see manufacturer specifications
TE Connectivity / AMP Brand Authorized Distributor

171630-1

E-J MK-2 070 REC CONT ...

View Datasheet Ask the Datasheet
RoHS Compliant
REEL Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

171630-1 is a socket contact for the Econoseal J Series sealed connector system, engineered for reliable wire-to-board connections in automotive environments. The contact is manufactured from brass with pre-tin plating and accommodates wire sizes from 0.2 to 0.5 mm² (AWG 24–20), with an insulation diameter range of 1.4–2.4 mm. It is designed to work with single wire seals (part number 178210-1, style B) and cavity plugs, providing waterproof protection against moisture, dust, corrosive gases, and liquids in extreme automotive conditions. This contact is commonly used in sensor wiring within motor hoods and electrical control systems operating under unfavorable climatic conditions, where sealed housing protection is essential to prevent premature contact degradation.

Product Highlights:

  • Contact
  • Wire Range = 0.20-0.60² [24-20] mm [AWG]
  • Contact Type = Receptacle
  • Wire Insulation Diameter = 1.40 - 2.41 mm
  • Brass Contact Material

Search Keywords: 1716301

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
171630-1
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536904000
COO:
JP
ECCN:
EAR99
Reel Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
6000
Package Type:
REEL
Contact Type:
Power
Gender:
SKT
Contact Size:
N/A
Wire Size:
20-24 AWG
Contact Material:
Brass
Contact Plating:
Pre-Tin
Maximum Current Rating:
N/A
Termination Method:
Crimp

FREQUENTLY ASKED QUESTIONS

What replaces 171630-1?

The recommended replacement for 171630-1 is 173707-1 from TE Connectivity / AMP Brand, available from Master Electronics.

Is 171630-1 RoHS compliant?

Yes, 171630-1 is RoHS compliant.

What is the lead time for 171630-1?

The standard lead time for 171630-1 is approximately 18 days. In-stock quantities ship from Master Electronics.

  Different packaging options available.  See Alternatives
  Possible Replacement options available.  See Alternatives

IN STOCK: 18,000

Can Ship immediately

Minimum Order Quantity: 6000

Multiple: 6000

Factory Lead-Time 18 Weeks

Price (USD)

Qty
Unit Price
6,000
$0.0670
12,000
$0.0610
30,000
$0.0605
54,000
$0.0603
102,000
$0.0602
150,000
$0.0600
252,000 +
$0.0599
Reel Package
