1658683-1 by te connectivity / amp brand

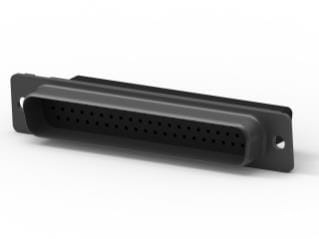

Image is representational - see manufacturer specifications
TE Connectivity / AMP Brand Authorized Distributor

1658683-1

D Sub Connector Housing - 44 Ways - High Density D Sub - 3 - AMPLIMITE HDP-22 Series - Receptacle. ...

View Datasheet Ask the Datasheet
RoHS Compliant
BOX Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

The 1658683-1 is a 44-way 3-row Crimp Snap-in Receptacle with thermoplastic insert. This Amplimite HDP-22 series connector comes with tin-plated steel shell and nylon GF housing. It is intermateable with any size 22 Subminiature D connector dimensionally complying with MIL-C-24308 and capable of using numerous standard HD-20 cable clamps and mating hardware.

Product Highlights:

  • Connector
  • Product Series = HDP-22 (Crimp Snap)
  • Number of Positions = 44
  • Receptacle
  • Without Contacts

Search Keywords: 16586831

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
1658683-1
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8538908180
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
400
Package Type:
BOX
Type:
High Density D-Sub
Body Orientation:
Straight
Mounting:
Panel Mount
Gender:
SKT
Termination Method:
Crimp
Shell Size:
3
Number of Contacts:
44
Contact Plating:
Gold over Nickel
Operating Temperature:
-55 to 105 °C

FREQUENTLY ASKED QUESTIONS

Is 1658683-1 RoHS compliant?

Yes, 1658683-1 is RoHS compliant.

What is the lead time for 1658683-1?

The standard lead time for 1658683-1 is approximately 19 weeks. In-stock quantities ship from Master Electronics.

IN STOCK: 1,035

Can Ship immediately

Minimum Order Quantity: 5

Factory Lead-Time 19 Weeks

Price (USD)

Qty
Unit Price
5
$6.73
25
$6.44
50
$6.32
100
$6.21
400
$6.12
800
$6.06
1,200 +
$6.04
Supplier's Standard Package
Log in for special pricing Click for Quote Price Match Request

Tools/3D Models

Product Guides

Product Changes

Accessories

1658672-1

HDP-22,PLUG,SIZE 3,44 POSN

1658680-1

D Sub Connector Housing - 44 Positions - High Density D Sub - DB - AMPLIMITE HDP-22 Series ...

1658677-1

HDP-22,OVRMLD,PLUG KIT,SIZE 3,

Show 1 More
