Image is representational - see mfr. specs

1616986-6

Name: 1616986-6
Brand: Te Connectivity Amp Brand
SKU: 50279552
Price: 21678.64 USD
Availability: InStock

TE Connectivity / AMP Brand

KD400A7C=CONTACTOR 1 N.O. AND 1 N.C. 400 ...

Datasheet

RoHS Compliant

Box Packaging

This product may require extra documentation. Shipping may be delayed 1-2 days.

DESCRIPTION

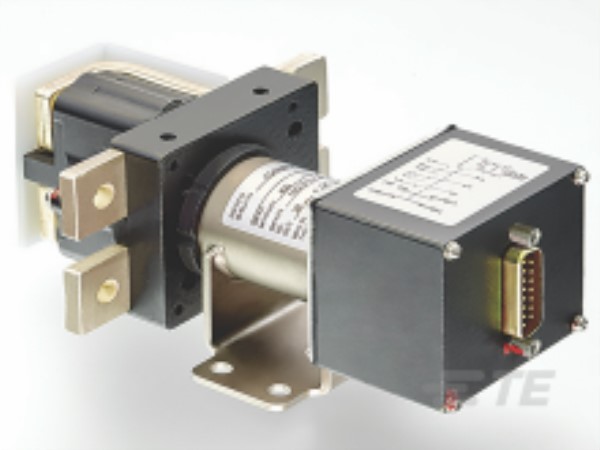

1616986-6 is a chassis mount power switching DC contactor from the HARTMAN K400 Series, designed for high-current switching applications up to 400 A at 28 VDC. It features one normally open (NO) and one normally closed (NC) main contact configuration with a rupture current rating of 4000 A and maximum voltage drop of 150 mV. The contactor operates over a temperature range of -55°C to +70°C and is electronically economized for reduced power consumption, with a pickup voltage of 18 VDC nominal and inrush current of 12 A maximum. With a mechanical life of 100,000 cycles and weight of 1.88 to 2 lb (854 to 908 g), this contactor meets applicable requirements of MIL-PRF-6106M. Common applications include aerospace, defense, and marine systems requiring reliable high-performance power switching.

Product Highlights:

Potential Applications:

Search Keywords: 16169866

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

TE Connectivity / AMP Brand

Part No:

1616986-6

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8536410045

COO:

ECCN:

9A991.D

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
