1586105-3

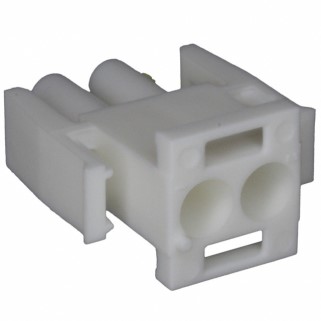

Name: 1586105-3 Te Connectivity Amp Brand Discrete Wire Housing
Brand: Te Connectivity Amp Brand
SKU: 10233324
Availability: InStock

3P RCPT VAL-U-LOK SR V2 ...

View Datasheet Ask the Datasheet

RoHS Compliant

BAG Packaging

Certificate of Compliance

DESCRIPTION

The 1586105-3 is a VAL-U-LOK single row mating receptacle housing designed for wire-to-board connector applications. This 3-position receptacle housing features UL 94V-2 nylon construction with brass contacts plated in tin (lead-free) and is compatible with existing VAL-U-LOK header connectors. The connector is rated for a maximum mating force of 1.55 lb (6.90 N) per circuit and a minimum unmating force of 0.11 lb (0.49 N) per circuit, with contact retention of 4.88 lb (21.71 N) minimum per contact. The housing is rated for 30 mating and unmating cycles and is intermateable with Molex Mini Fit Jr. connectors. Common applications include household appliances, HVAC systems, vending machines, gaming equipment, and lighting systems.

Product Highlights:

Housing
Receptacle
Number of Circuits = 3
UL 94V-2
Number of Rows = Single

Potential Applications:

Search Keywords: 15861053

SPECIFICATIONS

Product Attribute

Attribute Value

Select Attribute

Products found: 0

Supplier:

TE Connectivity / AMP Brand

Part No:

1586105-3

Unit of Measure:

Per Each

RoHS:

Yes

HTS:

8538906000

COO:

ECCN:

EAR99

Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
