1-1761681-1 by te connectivity / amp brand

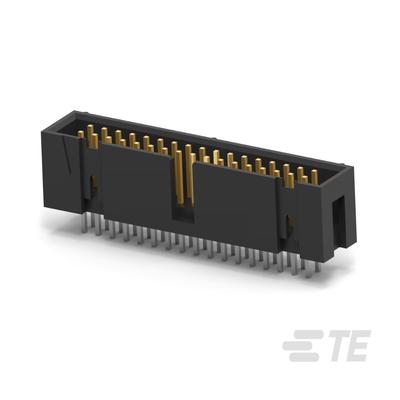

Image is representational - see manufacturer specifications
TE Connectivity / AMP Brand Authorized Distributor

1-1761681-1

IDC LOW PRO HDR 34P VERT HT BLACK ...

View Datasheet
RoHS Compliant
TRAY Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

The 1-1761681-1 is a vertical header assembly connector designed for printed circuit board interconnection applications. It features a 34-position configuration with phosphor bronze posts and a black PCT housing rated UL94V-0 for flame resistance. The posts are finished with a minimum of 0.00038 inches of gold on the mating area, 0.00254 inches of tin on the solder end, and 0.00127 inches of nickel overall, ensuring reliable electrical contact and solderability. The connector has a body length of 40.64 mm (1.600 inches) with a mating length of 48.26 mm (1.900 inches) and a maximum length of 50.80 mm (2.000 inches), with 2.54 mm (0.100 inch) pitch spacing between positions. This header assembly is commonly used in industrial control systems, telecommunications equipment, and computer peripherals where robust vertical interconnection and high contact reliability are required.

Search Keywords: 117616811

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / AMP Brand
Part No:
1-1761681-1
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536694040
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Package Type:
TRAY
Type:
Shrouded Header
Body Orientation:
Straight
Gender:
HDR
Mounting:
Through Hole
Pitch:
2.54 mm
Number of Contacts:
34
Maximum Voltage Rating:
250 VAC
Maximum Current Rating:
1/Contact A
Termination Method:
Solder
Operating Temperature:
-65 to 105 °C

FREQUENTLY ASKED QUESTIONS

What replaces 1-1761681-1?

The recommended replacement for 1-1761681-1 is 636-3427 from TE Connectivity / Buchanan Brand, available from Master Electronics.

Is 1-1761681-1 RoHS compliant?

Yes, 1-1761681-1 is RoHS compliant.

What is the lead time for 1-1761681-1?

The standard lead time for 1-1761681-1 is approximately 12 weeks. In-stock quantities ship from Master Electronics.

  Possible Replacement options available.  See Alternatives

IN STOCK: 945

Can Ship immediately

Minimum Order Quantity: 50

Multiple: 50

Factory Lead-Time 12 Weeks

Price (USD)

Qty
Unit Price
50
$2.79
100
$2.73
250
$2.66
500
$2.60
1,000
$2.55
2,500 +
$2.47
