MTL106D by te connectivity / alcoswitch brand

MTL106D

TE Connectivity / Alcoswitch Brand

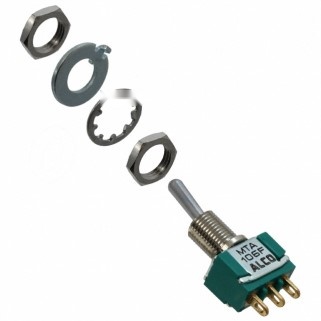

Toggle Switch - SPDT - On-On - 6A(AC)/4A(DC), 125VAC/28VDC - 17.00mm Locking Lever Actuator - Non-Illuminated - Solder Lug - Panel Mount. ...

Datasheet
RoHS Compliant
Pack Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The MTL106D is a high-quality toggle switch from the TE Connectivity / Alcoswitch Brand. This switch features a single pole, double throw (SPDT) configuration and is designed for applications that require a locking lever. The switch has a maximum rating of 6A at 250VAC and 28VDC. It is panel mountable and comes with threads for easy installation. The toggle switch is suitable for a wide range of industries and applications where reliable and durable switching is required.

Product Highlights:

  • MTL Series
  • Single Pole - Double Throw Configuration (Pole-Throw)
  • Current Rating = 6 Amps.
  • Mount Style = Panel
  • Termination Type = Vertical, Wire Lugs

Search Keywords: MTL106D

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / Alcoswitch Brand
Part No:
MTL106D
Alias/AKA:
3-1437559-4
RoHS:
Yes
HTS:
8536509065
COO:
CN
ECCN:
EAR99
Supplier Standard Pack  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
25
Package Type:
Pack
Pole Throw Configuration:
1P2T (SPDT)
Switch Configuration:
On None On
Contact Rating @ Voltage:
6@125VAC A
Actuator Style:
Locking Lever
Mounting:
Panel Mount with Threads
Thread Size:
1/4-40
Body Orientation:
Straight
Terminal Type:
Solder
Dimension:
13 x 8 x 40 mm
Operating Temperature:
-20 to 80 °C

IN STOCK: 287

Can Ship immediately

Factory Lead-Time 31 Weeks

Qty
Unit Price
1
$22.19
10
$15.51
25
$13.73
50
$13.52
100
$13.45
250
$13.39
500 +
$13.32
Suppliers Standard Package
