7022PKX by te connectivity / agastat brand

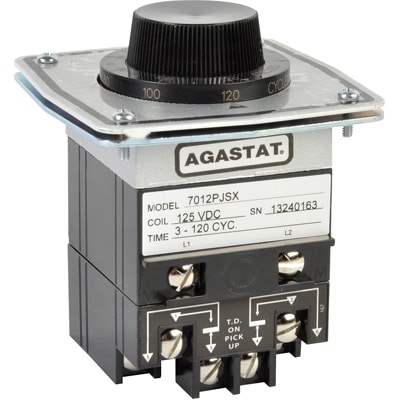

Image is representational - see mfr. specs

7022PKX

TE Connectivity / Agastat Brand

The 7022PKX is a 2PDT off-delay electropneumatic timing relay with a 125VDC coil and an adjustable timing range of 1 to 300 seconds. ...

Datasheet
RoHS Non-Compliant
Pack Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 7022PKX is an industrial off-delay electropneumatic timing relay from the 7000 series. This 2PDT model operates on a 125VDC coil and features an adjustable timing range from 1 to 300 seconds. Upon energization, the switch transfers instantaneously; the preset time delay begins only upon de-energization, after which the switch returns to its original position. It offers a repeat accuracy of ±5% for delays up to 200 seconds and ±10% for longer delays, with a fast 50 ms reset time. This specific model includes a panelmount kit for convenient out-front adjustment and horizontal operation, making it ideal for industrial control panels and equipment sequencing applications.

Product Highlights:

  • 7000 Electropneumatic Timing Series
  • Time Delay Relay
  • Input Voltage = 125 VDC
  • Contact Arrangement = 2 Form C, DPDT, 2 C/O
  • Contact Rating = 10A @ 240 VAC

Search Keywords: 7022PKX

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / Agastat Brand
Part No:
7022PKX
Alias/AKA:
3-1423164-5
Unit of Measure:
Per Each
RoHS:
No
HTS:
8536490075
COO:
US
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
Pack
Mounting:
Panel Mount
Type:
Time Delay Relay
Contact Arrangement:
DPDT
DC Coil Voltage:
125 V
AC Coil Voltage:
N/A
Contact Form:
2 Form C
Maximum Current Rating:
10 A
Termination Style:
Screw Terminal
Time Range:
1 to 300 sec

IN STOCK: 12

Can Ship immediately

On Order: 10   can ship 5/5/27

MOQ for out of Stock Qty: 2

Factory Lead-Time 54 Weeks

Qty
Unit Price
1
$921.68
2
$883.74
4
$874.99
6
$866.32
8 +
$857.75
Log in for special pricing Click for Quote Price Match Request
