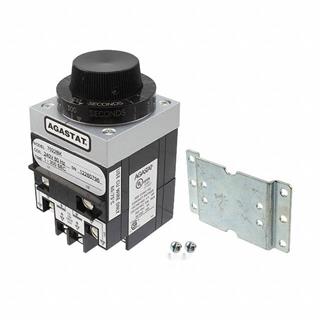

7022AK by te connectivity / agastat brand

7022AK

TE Connectivity / Agastat Brand

Industrial Electropneumatic Timing Relay - 2FormC - DPDT - 1 to 300 sec Off Delay - 120VAC 60 Hz / 110VAC 50Hz ...

Datasheet
RoHS Non-Compliant
Pack Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The TE Connectivity / Agastat Brand part 7022AK is an Industrial Electropneumatic Timing Relay designed for reliable and precise timing control in various applications. This relay features a DPDT (Double Pole Double Throw) configuration with 2 Form C contacts, which allows for versatile and flexible switching options. With an off delay timing range of 1 to 300 seconds, this relay provides accurate timing control for various industrial processes. The 7022AK is compatible with both 120VAC 60Hz and 110VAC 50Hz power supplies, making it suitable for use in different regions. Trust in this high-quality timing relay to ensure efficient and reliable operation in your industrial automation systems.

Product Highlights:

  • 7000 Electropneumatic Timing Series
  • Time Delay Relay
  • Input Voltage = 110 VAC, 120 VAC
  • Contact Arrangement = 2 Form C, DPDT, 2 C/O
  • Contact Rating = 10A @ 240 VAC

Search Keywords: 7022AK

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / Agastat Brand
Part No:
7022AK
Alias/AKA:
1-1423162-8
RoHS:
No
HTS:
8536410050
COO:
US
ECCN:
EAR99
Supplier Standard Pack  This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
Pack
Mounting:
Panel Mount
Type:
Time Delay Relay
Contact Arrangement:
DPDT
DC Coil Voltage:
N/A
AC Coil Voltage:
115 V
Contact Form:
2 Form C
Maximum Current Rating:
10 A
Termination Style:
Screw Terminal
Time Range:
1 to 300 sec

IN STOCK: 0

On Order: 25   can ship 7/22/26
On Order: 24   can ship 10/21/26

Factory Lead-Time 46 Weeks

Qty
Unit Price
1
$728.42
3
$724.78
5 +
$679.32
