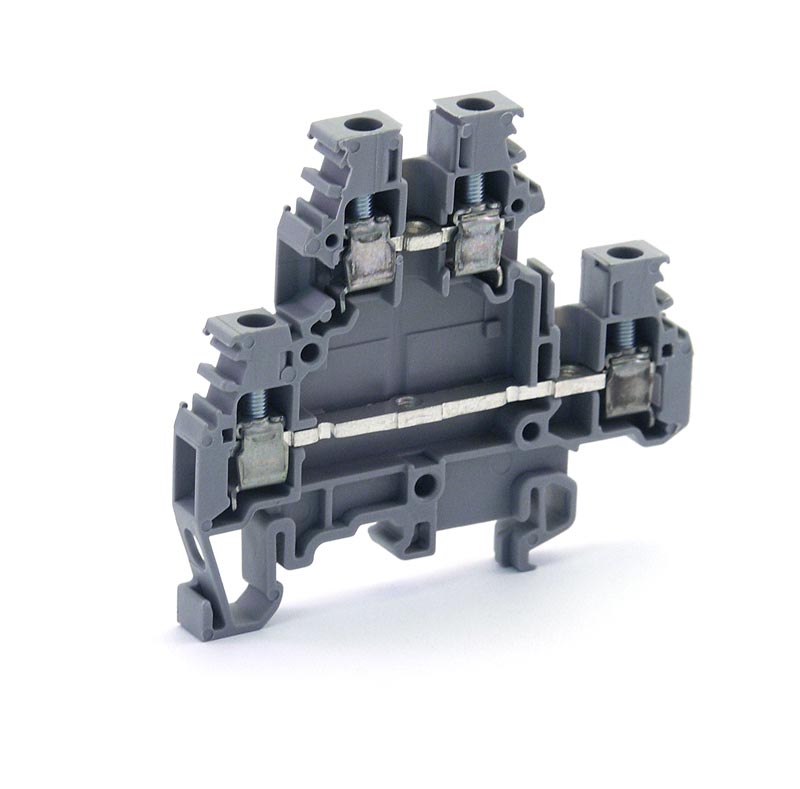

Image is representational - see mfr. specs

1SNA105045R2200

TE Connectivity / ABB Entrelec

The 1SNA105045R2200 is a yellow, double-deck, screw clamp feed-through terminal block for connecting two independent circuits. ...

Datasheet
RoHS Compliant
Box Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 1SNA105045R2200 is a double-deck, feed-through terminal block designed to connect two independent circuits within a compact 6 mm spacing. It utilizes a screw clamp connection type and accommodates a rated cross-section of 4 mm² for both rigid (0.2-4 mm²) and flexible (0.22-4 mm²) wires. This polyamide terminal block is rated for 800V and 32A, with a rated impulse withstand voltage of 8000V. Its space-saving design and ability to mount on various DIN rails (G32, TH35-7.5, TH35-15) make it a flexible solution for industrial control panels and systems requiring high-density wiring.

Search Keywords: 1SNA105045R2200

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / ABB Entrelec
Part No:
1SNA105045R2200
Alias/AKA:
010504522
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8538908180
COO:
MA
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Package Type:
Box
UL Flammability Rating:
UL 94V-0
Modular Terminal Block Product Type:
Screw Clamp Terminal Block
Operating Voltage Rating (UL & CSA) (Max) - Main Circuit:
300 V
Number of Poles:
4
Product Depth:
52 mm
Product Height:
65.5 mm
Product Length:
52 mm
Impulse Withstanding Voltage Rating (IEC):
8000 V
Current Rating (IEC):
32 A
Housing Material:
Polyamide 6.6
IP Rating:
IP20
Block Function:
Feed-Through
Current Rating (CSA):
25 A
Gauge Type:
A4
Primary Product Color:
Yellow
Number of Positions:
2
Current Rating (UL):
20 A
Voltage Rating (IEC):
800 V
Number of Circuits:
2
Voltage Rating (CSA):
600 V
Termination Method to Wire & Cable:
Screw Terminal
Circuit Application:
Signal
Number of Levels:
2
Connector Mounting Type:
DIN Rail
Short-Time Withstanding Current Rating @ 1s:
480 A
Tightening Torque:
4.4 in-lbs, .5 Nm
Tool Size:
.157 in, 4 mm
Product Width:
.235 in, 6 mm
Product Weight:
20 g, .705 oz
Wire Size:
12 AWG, 4 mm²
Installation Temperature Range:
-5 – 40 °C, 23 – 104 °F
Operating Temperature Range:
-55 – 110 °C, -67 – 230 °F
DIN Rail Mounting Type:
G32 , TH35-15 , TH35-7.5
Wire Stripping Length:
.335 in, 8.5 mm
Product Spacing:
.235 in, 6 mm
Operating Voltage:
800 VAC

IN STOCK: 0

MOQ for out of Stock Qty: 125

Factory Lead-Time 33 Weeks

Price (USD)

Qty
Unit Price
125
$6.02
250
$3.70
375
$2.93
500 +
$2.87
