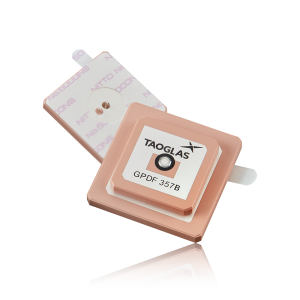

GPDF357B by taoglas
Image is representational - see mfr. specs

GPDF357B

Taoglas

The GPDF357B is an embedded, dual-pin stacked passive patch antenna designed for GPS L1/L2 and Galileo E1 band reception. ...

Datasheet
RoHS Compliant
Tray Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The GPDF357B is a precision-engineered embedded stacked passive patch antenna supporting the GPS L1/Galileo E1 (1575.42 MHz) and GPS L2 (1227.6 MHz) bands. Its dual-pin, dual-feed stacked design results in a compact 35x35x7.15mm form factor, tuned for a 35x35mm ground plane. The antenna provides right-hand circular polarization (RHCP) with a low axial ratio of less than 2 dB, a peak zenith gain of 2.8 dBi on the L1 band, and operates with a nominal 50Ω impedance. With its excellent gain and stable radiation patterns, it is ideal for applications requiring high positional accuracy, such as UAVs, robotics, precision agriculture, and RTK systems.

Search Keywords: GPDF357B

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Taoglas
Part No:
GPDF357B
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8529104040
COO:
TW
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
Tray

IN STOCK: 98

Can Ship immediately

MOQ for In Stock Qty: 5

MOQ for out of Stock Qty: 25

Factory Lead-Time 11 Weeks

Price (USD)

Qty
Unit Price
5
$17.31
10
$15.58
25
$12.38
50
$12.28
75
$12.25
100 +
$10.95
Log in for special pricing Click for Quote Price Match Request
