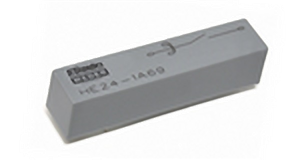

8512183003 by standex electronics
Image is representational - see mfr. specs

8512183003

Standex Electronics

The 8512183003 is a high-voltage relay with a single normally open (Form A) contact for high-power switching. ...

Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The 8512183003 is a high-voltage relay featuring a single normally open (Form A) contact configuration. It operates on a 12 VDC coil with a typical resistance of 260 Ohms and a rated power of 554 mW. This component is engineered for demanding applications, capable of switching up to 7,500 V and 3 A, with a maximum contact power rating of 50 W. Key performance characteristics include a high breakdown voltage of 10 kV DC and a maximum operate time of 3.2 ms. Its robust specifications make it suitable for use in test and measurement equipment, industrial controls, and other high-voltage circuits.

Search Keywords: 8512183003

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Standex Electronics
Part No:
8512183003
Alias/AKA:
HE12-1A83-03
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536410020
COO:
US
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
34
Type:
Dry
DC Coil Voltage:
12 V
Contact Arrangement:
SPST-NO
Maximum AC Switching Voltage:
7.5 KV
Maximum DC Switching Voltage:
7.5 KV
Maximum Carry Current:
5 A
Maximum Switching Current:
3 A
Maximum Switching Power:
50 W
Package Type:
N/A
Terminal Type:
PC Pin
Mounting:
Through Hole

IN STOCK: 0

On Order: 150   can ship 8/17/26

Factory Lead-Time 9 Weeks

Price (USD)

Qty
Unit Price
1
$49.52
5
$46.31
10
$44.93
34
$42.49
68 +
$41.11
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request
