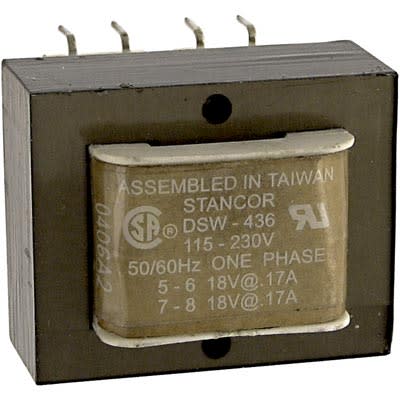

DSW-436 by stancor
Image is representational - see manufacturer specifications
Stancor Authorized Distributor

DSW-436

Power Transformer - Sec:Ser 170mA - Pri:115/230V - Sec:Ser 36VCT - 2500Vrms - 6VA - 8 Terminals - PC Pin Thru-Hole.

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

The DSW-436 is split bobbin PCB mount transformer with dimensions 41.4 x 33.27 x 33.27 mm. Split bobbin winding design eliminates electrostatic shielding requirement and expense.

Search Keywords: DSW436

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Stancor
Part No:
DSW-436
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536507000
COO:
TW
ECCN:
EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
1
Primary Configuration:
Dual
Primary Side Voltage:
230,115 V
Secondary Configuration:
Dual
Secondary Side Voltage:
36,18 V
Secondary Side Current:
170,340 mA
Power Rating:
6 VA
Mounting:
Through Hole
Dimension:
41.4 x 33.27 x 33.27 mm

FREQUENTLY ASKED QUESTIONS

Is DSW-436 RoHS compliant?

Yes, DSW-436 is RoHS compliant.

What is the lead time for DSW-436?

The standard lead time for DSW-436 is approximately 10 weeks. In-stock quantities ship from Master Electronics.

IN STOCK: 285

Can Ship immediately

Factory Lead-Time 10 Weeks

Price (USD)

Qty
Unit Price
1
$31.92
2
$30.32
5
$28.80
10
$27.36
20
$25.04
25
$23.79
50 +
$21.63
Log in for special pricing
