ALTERNATIVE PRODUCTS
Older Equivalent

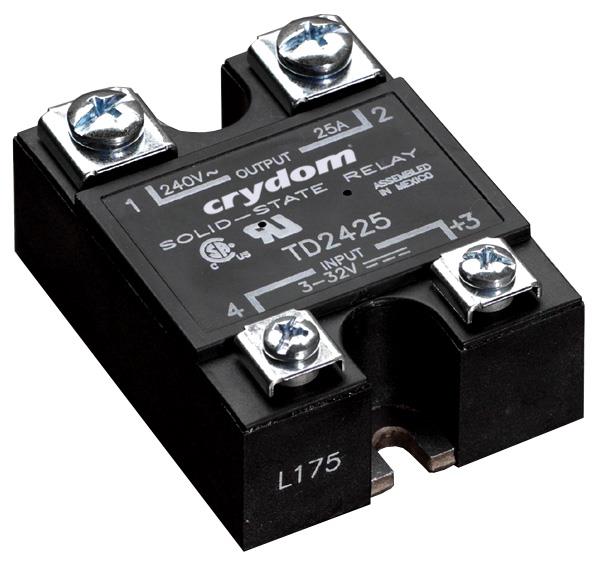

TD2425
TD2425
In Stock: 9
Minimum Order: 1
VIEW PRODUCT
D2425 by sensata / crydom
Image is representational - see manufacturer specifications
Sensata / Crydom Authorized Distributor

D2425

The D2425- is a solid-state relay series 1 with SCR output for heavy industrial loads. Input control voltage range is 3-32 VDC. Operating voltage is 24-280 VAC and the max load current is 25 A. Series 1 relay has redesigned housing with anti-rotation barriers. I/O isolation voltage is 4000 Vrms. Switching type: zero voltage turn-on. Mounting type: panel mount. ...

View Datasheet Ask the Datasheet
RoHS Compliant
EACH Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

The D2425 is a solid-state relay series 1 with SCR output for heavy industrial loads. Input control voltage range is 3-32 VDC. Operating voltage is 24-280 VAC and the max load current is 25 A. Series 1 relay has redesigned housing with anti-rotation barriers. I/O isolation voltage is 4000 Vrms. Switching type: zero voltage turn-on. Mounting type: panel mount.

Search Keywords: D2425

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Sensata / Crydom
Part No:
D2425
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536490080
COO:
MX
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
20
Package Type:
EACH
Output Type:
AC
Maximum Output Voltage:
280(RMS) V
Maximum Output Current:
25(RMS) A
Output Device:
SCR
Input Type:
DC
Input Voltage:
32 V
Mounting:
Screw
Circuit Arrangement:
1 Form A
Dimension:
58.4 x 45.7 x 23 mm

FREQUENTLY ASKED QUESTIONS

What replaces D2425?

The recommended replacement for D2425 is TD2425 from Sensata / Crydom, available from Master Electronics.

Is D2425 RoHS compliant?

Yes, D2425 is RoHS compliant.

What is the lead time for D2425?

The standard lead time for D2425 is approximately 8 days. In-stock quantities ship from Master Electronics.

IN STOCK: 1,498

Ships today, if you order in

Factory Lead-Time 8 Weeks

Price (USD)

Qty
Unit Price
1
$63.00
5
$41.89
20
$40.68
40
$40.27
60
$40.00
100
$39.74
260 +
$39.64
Supplier's Standard Package
