CSW2475-10 by sensata / crydom
Image is representational - see mfr. specs

CSW2475-10

Sensata / Crydom

Solid State Relay - 3-32 VDC Control - 75 A Max Load - 24-280 VAC Operating - Instantaneous - Screw Termination - Panel Mount.

Datasheet
RoHS Compliant
EACH Packaging
Accessories
Request Programming Quote
Discontinued & Replaced
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The CSW2475-10 solid state relay has SCR output for heavy industrial loads. EMC Compliant for reliable operation in harsh environments. Dimensions of this relay are: 1.75" (44.5mm) x 2.25" (57.3mm) x 0.89" (22.6mm).

Search Keywords: CSW247510

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Sensata / Crydom
Part No:
CSW2475-10
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536490080
COO:
MX
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Package Type:
EACH
Output Type:
AC
Maximum Output Voltage:
280 V
Maximum Output Current:
75 A
Output Device:
SCR
Input Type:
DC
Input Voltage:
32 V
Mounting:
Screw
Circuit Arrangement:
N/A
Dimension:
58.4 x 45.7 x 22.9 mm
Life Cycle:
Discontinued & Replaced
  This product is discontinued, but still in stock

IN STOCK: 18

Can Ship immediately

Minimum Order Quantity: 2

Qty
Unit Price
2
$79.66
5
$78.18
9
$76.71
18 +
$75.23
Log in for special pricing Click for Quote Price Match Request
Please Note: Tariffs may apply for U.S. shipments

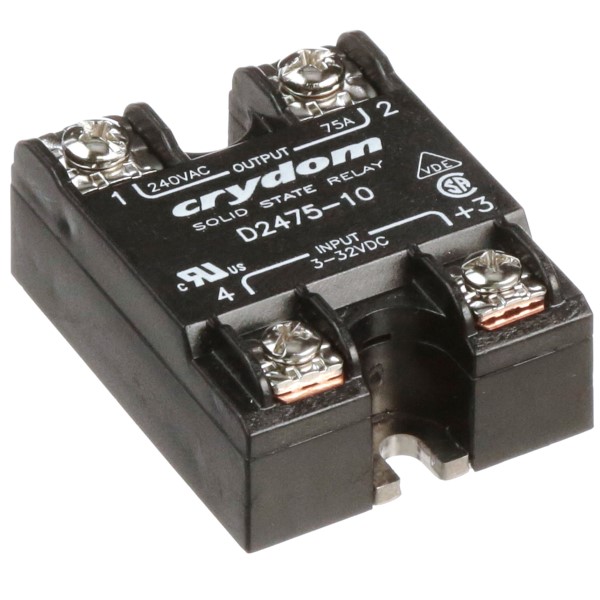

RECOMMENDED REPLACEMENT
D2475-10
D2475-10
VIEW PRODUCT
