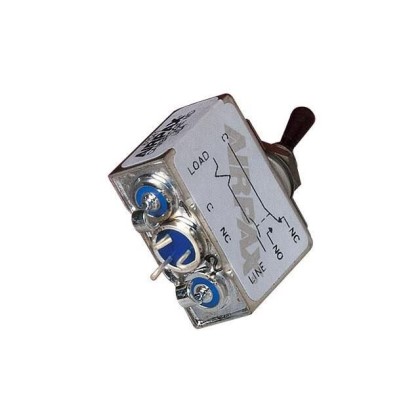

M39019/01-326 by sensata / airpax
Image is representational - see mfr. specs

M39019/01-326

Sensata / AIRPAX

Hydraulic Magnetic Circuit Breaker, 1 PoleMIL Series | Sensata - Airpax M39019/01-326 ...

Datasheet
RoHS Non-Compliant
Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

M39019/01-326 is a single-pole hydraulic magnetic circuit protector manufactured by Airpax in accordance with MIL-PRF-39019, designed to provide accurate and reliable circuit protection with inverse time delays and trip-free features. The unit is rated for 20 amperes at 120 volts 50/60Hz operation and features a fully sealed magnetic design that maintains consistent trip current across a wide temperature span, unlike thermal protectors. It includes a 3/8-32 NEF-2B hex nut mounting interface with panel mounting provisions and optional ON-OFF plate, with maximum panel thickness of 0.156 inches (3.96 mm). The protector is available with various delay options (61, 62, 71, 72, A, B and their variants) to match specific application requirements, and offers optional FM approval for petrochemical applications. This device is ideal for aerospace, military, and industrial applications requiring dependable overload protection with precise trip characteristics.

Search Keywords: M3901901326

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Sensata / AIRPAX
Part No:
M39019/01-326
Unit of Measure:
Per Each
RoHS:
No
HTS:
8536200020
COO:
MX
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
3

IN STOCK: 2

Can Ship immediately

Factory Lead-Time 10 Weeks

Price (USD)

Qty
Unit Price
1
$846.33
3 +
$834.75
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request
