IUGN6-1-72-30.0 by sensata / airpax

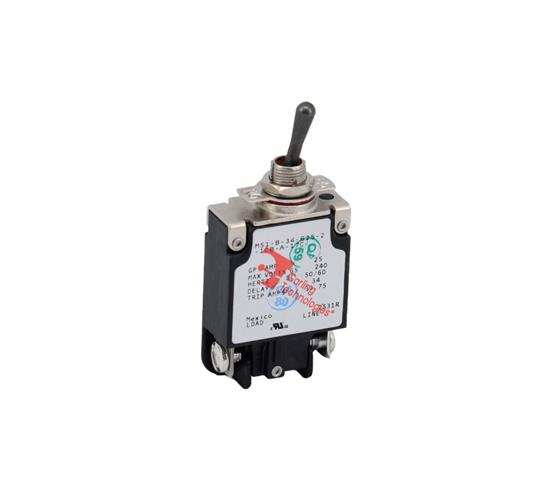

Image is representational - see mfr. specs

IUGN6-1-72-30.0

Sensata / AIRPAX

The IUGN6-1-72-30.0 is a single-pole, series trip hydraulic-magnetic circuit protector with a sealed toggle, rated for 30.0A with a long delay for DC/60Hz applications. ...

Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The IUGN6-1-72-30.0 is a single-pole, sealed toggle hydraulic-magnetic circuit protector designed for reliable overcurrent protection and power switching. This protector features a series trip configuration with screw terminals, a 30.0A current rating, and a long time delay (Curve 72) for DC or 60Hz circuits. It incorporates a trip-free mechanism that ensures the circuit opens during an overload regardless of the handle position and operates reliably in ambient temperatures from -40°C to +85°C. The sealed toggle design with bushing mounting ensures panel integrity, making it ideal for use in harsh environments such as military applications, data processing equipment, and medical instrumentation.

Search Keywords: IUGN6172300

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Sensata / AIRPAX
Part No:
IUGN6-1-72-30.0
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536200020
COO:
MY
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
3
Type:
Hydraulic Magnetic
Voltage Rating:
240,80 VAC|VDC
Number of Poles:
1
Current Rating:
30 A
Terminal Design:
Screw
Operating Temperature:
-40 to 85 °C
Mounting:
Screw Mount

IN STOCK: 21

Ships today, if you order in

Minimum Order Quantity: 3

Factory Lead-Time 9 Weeks

Qty
Unit Price
3
$94.19
6
$83.34
12
$75.72
27
$75.35
51
$55.06
75 +
$40.63
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request
Please Note: Tariffs may apply for U.S. shipments

Tools/3D Models

Product Guides
