IAGN6-1-59-10.0 by sensata / airpax

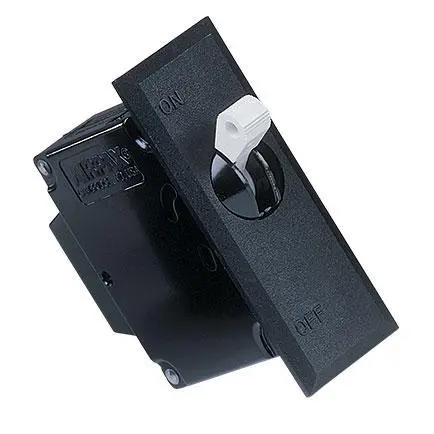

Image is representational - see manufacturer specifications
Sensata / AIRPAX Authorized Distributor

IAGN6-1-59-10.0

Circuit Breaker Hydraulic Magnetic 1Pole 10A 80VDC ...

View Datasheet Ask the Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

IAGN6-1-59-10.0 is a single-pole hydraulic magnetic circuit protector from the Airpax IAG series, designed for low-cost power switching, reliable circuit protection, and accurate circuit control. This device features a 10.0 A current rating with delay curve 59 (instantaneous trip characteristic), providing fast response with maximum trip times of 0.120 seconds at 125% rated current and 0.017 seconds at 1000% rated current. The unit has a typical DC resistance of 0.017 ohms at 10.0 A rating and dimensions including 1.687 inches [42.65 mm] width and 2.075 inches [52.71 mm] maximum depth. Common applications include equipment requiring IEC and VDE compliance, with UL recognition as supplementary protectors per UL STD. 1077 and CSA certification.

Search Keywords: IAGN6159100

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Sensata / AIRPAX
Part No:
IAGN6-1-59-10.0
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536200020
COO:
MY
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
3
Type:
Hydraulic Magnetic
Voltage Rating:
80 VDC
Number of Poles:
1
Current Rating:
10 A
Mounting:
Panel Mount

FREQUENTLY ASKED QUESTIONS

Is IAGN6-1-59-10.0 RoHS compliant?

Yes, IAGN6-1-59-10.0 is RoHS compliant.

What is the lead time for IAGN6-1-59-10.0?

The standard lead time for IAGN6-1-59-10.0 is approximately 12 days. In-stock quantities ship from Master Electronics.

IN STOCK: 0

On Order: 19   can ship 10/21/26

Minimum Order Quantity: 3

Multiple: 3

Factory Lead-Time 12 Weeks

Price (USD)

Qty
Unit Price
3
$97.05
6
$71.46
12
$66.14
21
$65.20
51
$39.36
102 +
$34.33
