AP17-1-61-153 by sensata / airpax

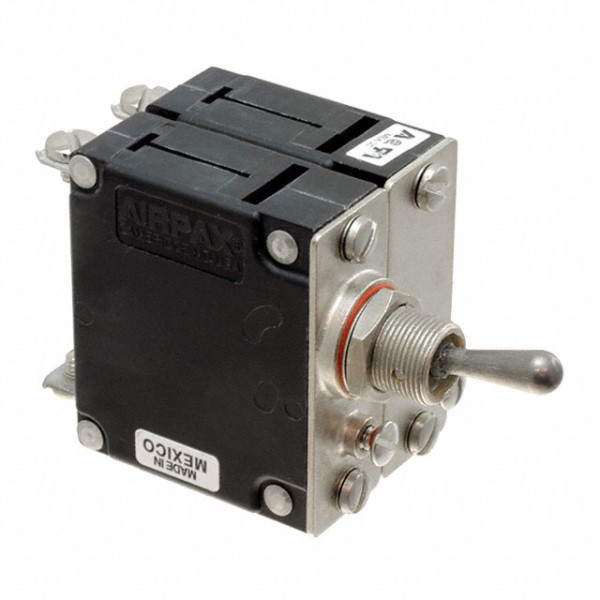

Image is representational - see manufacturer specifications
Sensata / AIRPAX Authorized Distributor

AP17-1-61-153

Magnetic Circuit Breaker - 15.00A - 2 Pole - 240VAC Max - Screw Terminals - 50/60Hz - short time delay - Sealed ...

View Datasheet Ask the Datasheet
RoHS Non-Compliant
Packaging
Accessories
Request Programming Quote
Certificate of Compliance

DESCRIPTION

AP17-1-61-153 is a fully sealed magnetic circuit protector designed for DC circuit applications with a 15-ampere nominal current rating and short time delay characteristic. This single-pole unit features an auxiliary switch rated at 3.0 amperes at 120 VAC / 50 VDC, providing integrated circuit protection and switching functionality. The protector combines accurate, reliable circuit protection with inverse time delays and trip-free features, maintaining consistent trip current performance across a wide temperature span. The unit weighs approximately 1.8 ounces (49 grams) per pole and is designed for panel mounting with rugged three-point support. Common applications include aerospace, military, and industrial systems requiring dependable overload and short-circuit protection with minimal temperature sensitivity.

Search Keywords: AP17161153

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Sensata / AIRPAX
Part No:
AP17-1-61-153
Unit of Measure:
Per Each
RoHS:
No
HTS:
8536200020
COO:
MX
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
3
Type:
Hydraulic Magnetic
Voltage Rating:
240 VAC
Number of Poles:
2
Current Rating:
15 A
Terminal Design:
Screw
Operating Temperature:
-40 to 100 °C
Mounting:
Panel Mount

FREQUENTLY ASKED QUESTIONS

Is AP17-1-61-153 RoHS compliant?

No, AP17-1-61-153 is not RoHS compliant.

What is the lead time for AP17-1-61-153?

The standard lead time for AP17-1-61-153 is approximately 6 weeks. In-stock quantities ship from Master Electronics.

IN STOCK: 5

Can Ship immediately

Factory Lead-Time 6 Weeks

Price (USD)

Qty
Unit Price
1
$832.82
3 +
$781.18
Supplier's Standard Package
