W199BX-13 by schneider electric-legacy relays

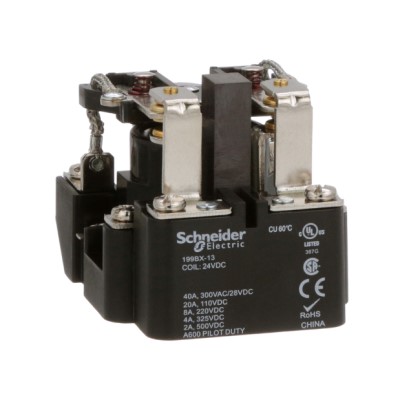

Image is representational - see mfr. specs

W199BX-13

Schneider Electric-Legacy Relays

Electromechanical Relay 24VDC 290Ohm 40A DPDT (63.5x79.2x64.26)mm Power Relay ...

Datasheet
RoHS Compliant
Packaging
Accessories
Request Programming Quote
Discontinued & Replaced
This product is backed by Master Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee

DESCRIPTION

The Magnecraft / Schneider Electric part W199BX-13 is an Electromechanical Relay designed for high-power applications. With a coil voltage of 24VDC and a resistance of 290 Ohms, this relay is capable of switching currents up to 40A. The DPDT (Double Pole Double Throw) configuration allows for versatile switching options. This Power Relay measures approximately 63.5 x 79.2 x 64.26 mm in size. Perfect for industrial and heavy-duty applications, this relay offers reliable and efficient performance.

Search Keywords: W199BX13

SPECIFICATIONS

Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Schneider Electric-Legacy Relays
Part No:
W199BX-13
Alias/AKA:
199BX-13
Unit of Measure:
Per Each
RoHS:
Yes
HTS:
8536410050
COO:
CN
ECCN:
EAR99
Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
10
Relay Construction:
Non-Latching
AC Coil Voltage:
N/A
DC Coil Voltage:
24 V
Contact Arrangement:
DPDT
Maximum Current Rating:
40 A
Mounting:
N/A
Termination Style:
Screw Terminal
Push to Test Button:
No
Led Indicator:
No
Operating Temperature:
-40 to 55 °C
Life Cycle:
Discontinued & Replaced
  This product is discontinued, but still in stock

IN STOCK: 202

Can Ship immediately

Qty
Unit Price
1
$46.28
5
$44.74
10
$39.28
30
$38.80
50
$38.70
100
$38.61
250 +
$38.51
Suppliers Standard Package
Log in for special pricing Click for Quote Price Match Request
Older Equivalent
199BX-13
199BX-13
VIEW PRODUCT

Tools/3D Models

Product Guides

Accessories

50-1289-1

Enclosure Metal Universal Mount
